设计师,连图纸的标准化管理都不懂?

  • 2026-09-26 09:14:12
设计师,连图纸的标准化管理都不懂?
图纸是一种传输介质，是一种无声的语言
它可以将设计师出色的设计理念传输至相关部门
用于指导采购、施工等等工作
以至于将设计作品实实在在的落地
一张图纸包含有图框、标题栏、图形、
比例、尺寸、符号、技术要求等诸多要素
每一种要素都有可遵循的标准要求
依据这些标准，每位设计师设计的图纸
就可以做到互通、通俗易懂、沟通无碍
这是标准化的意义
...

SO 又到了收集素材的时刻了~

今天 小编给大家带来一份

《知名设计公司图纸管理 - 标准化手册及例图》

希望对大家的工作有所帮助

文末查看获取方式

《知名设计公司图纸管理》
标准化手册及例图
文件格式：CAD+PDF+JPG
大小：98MB

部 分 鉴 赏 请 看

【资料目录】

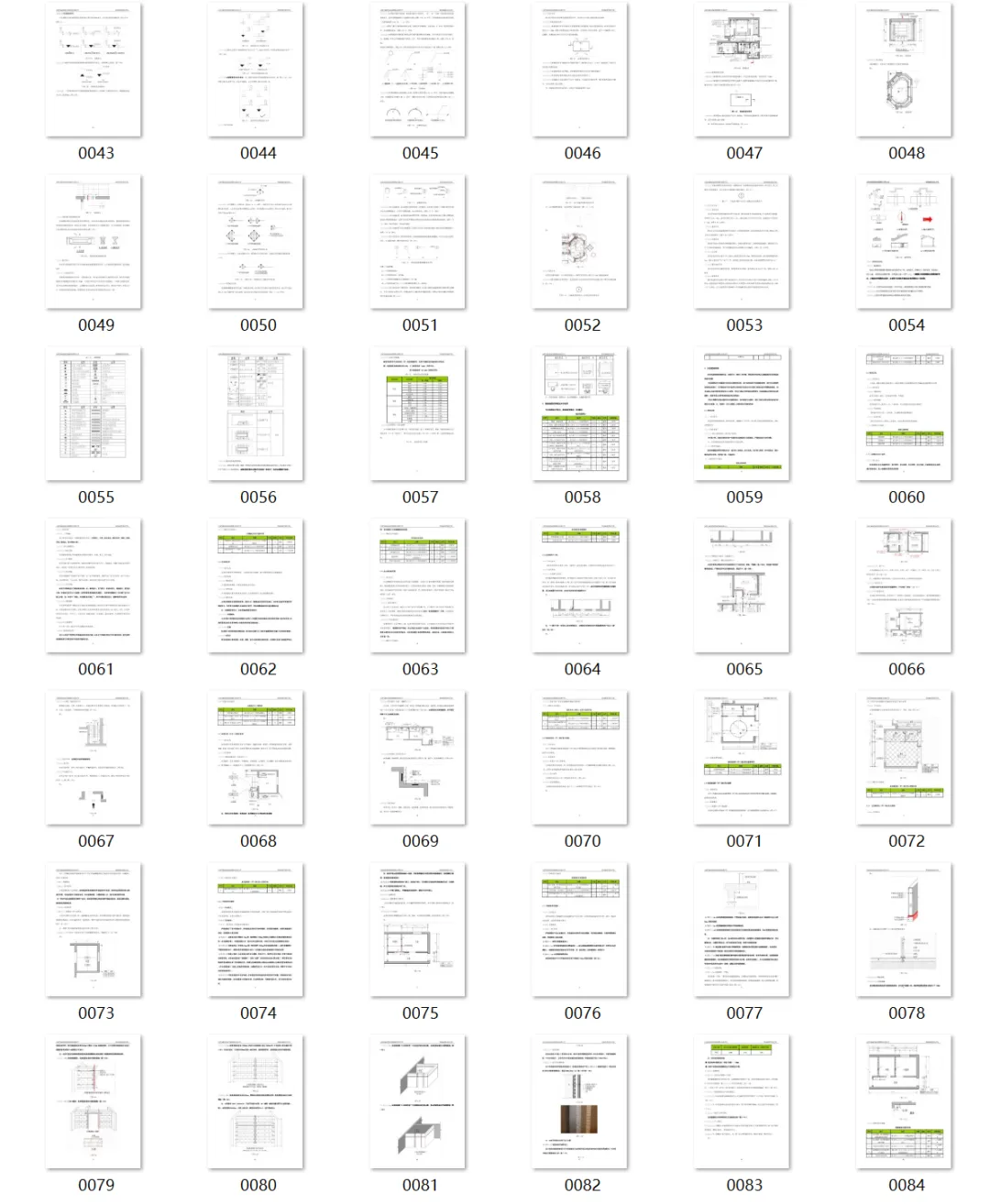

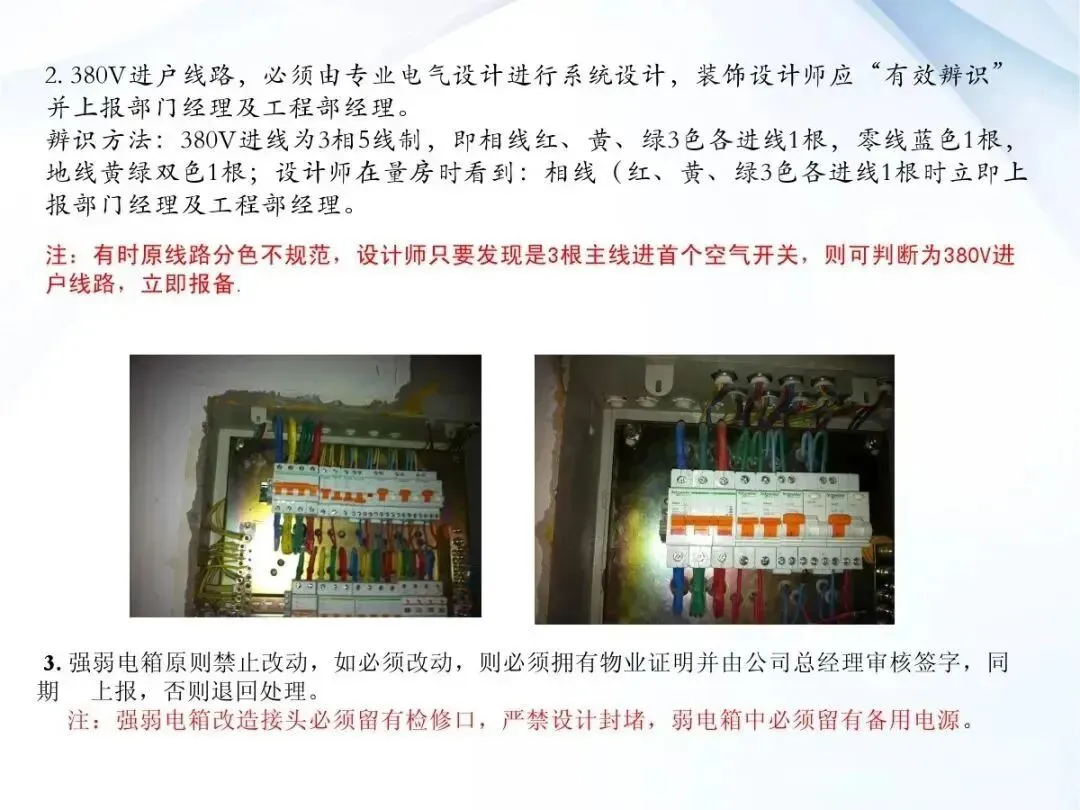

文件预览

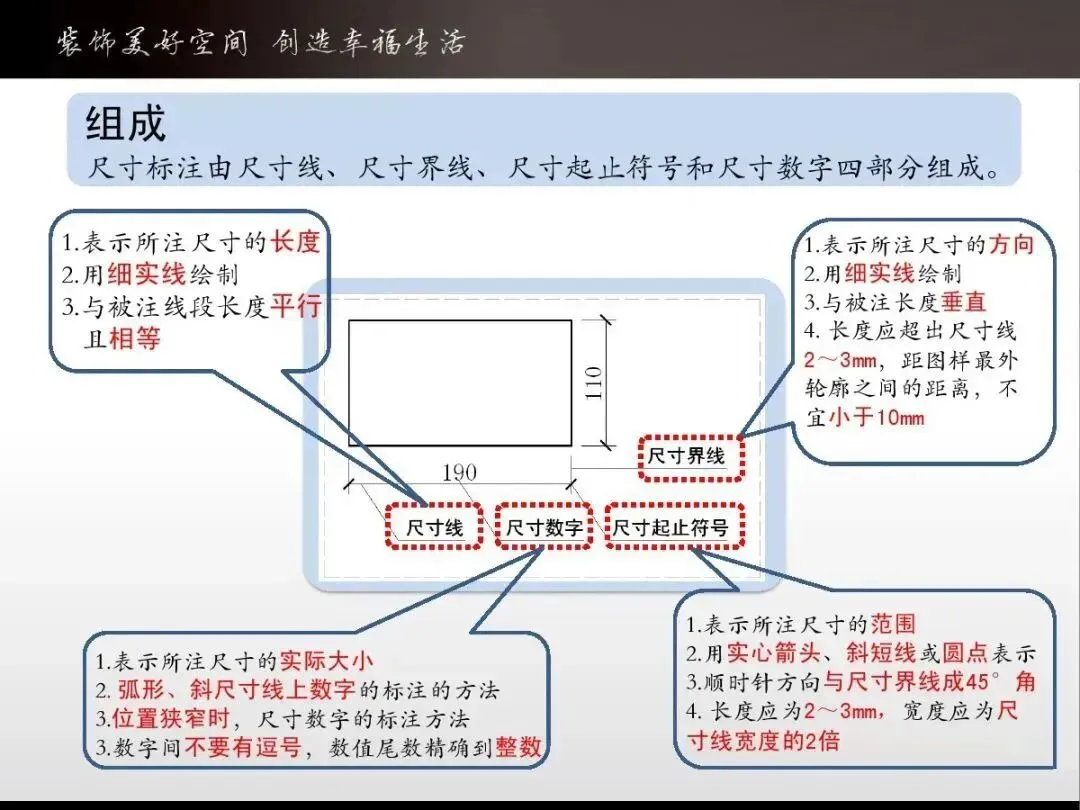

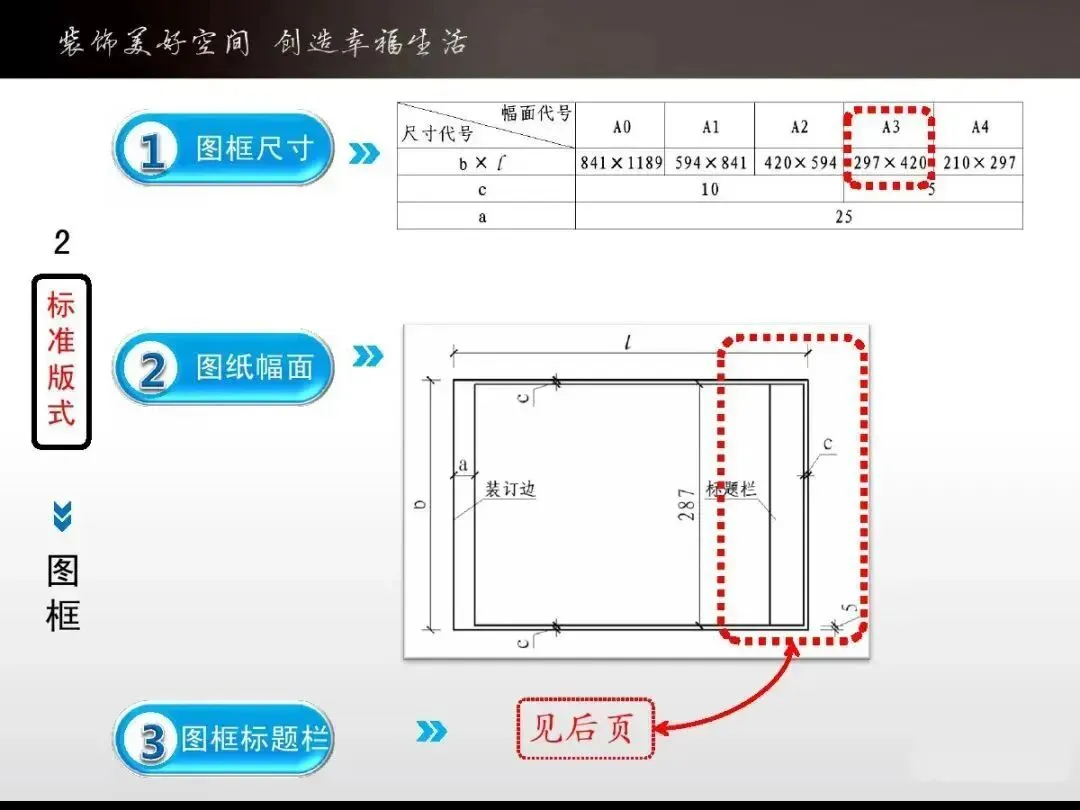

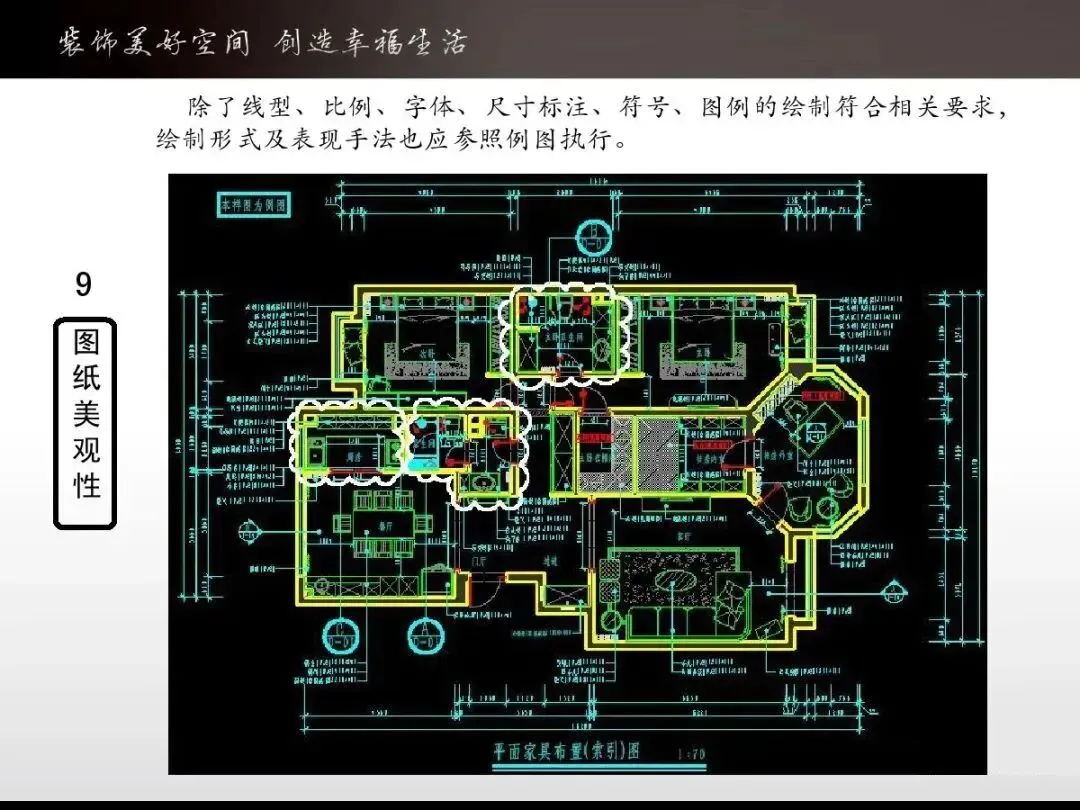

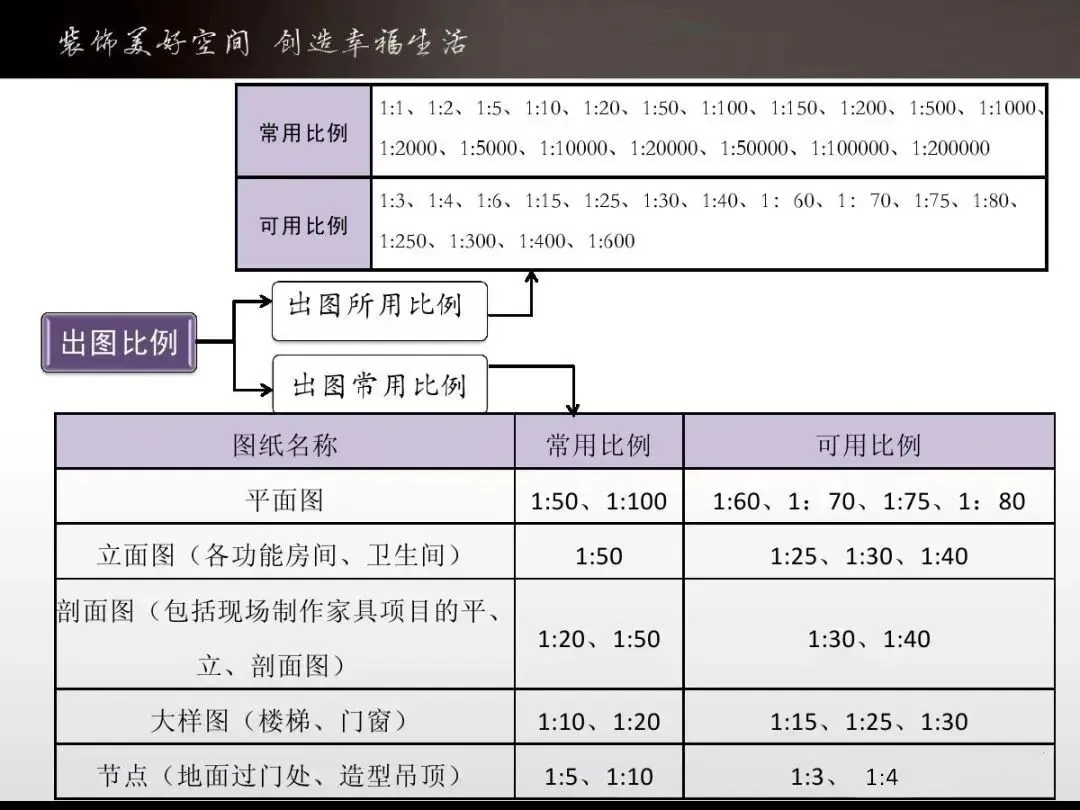

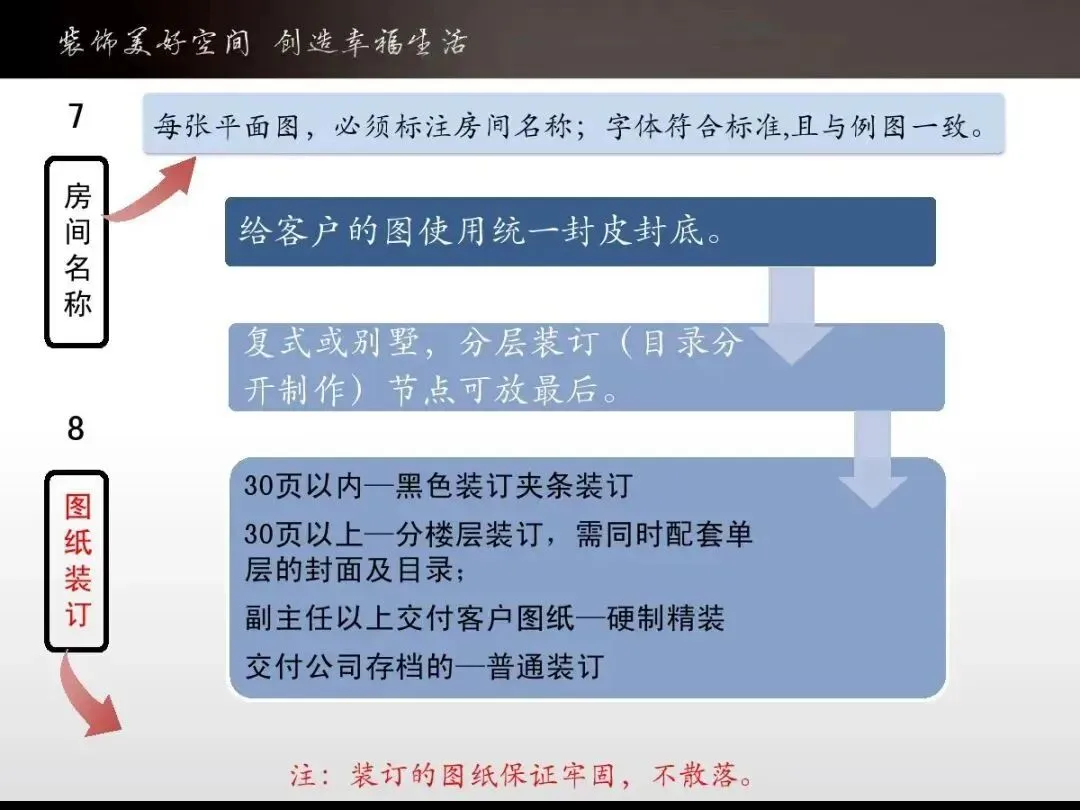

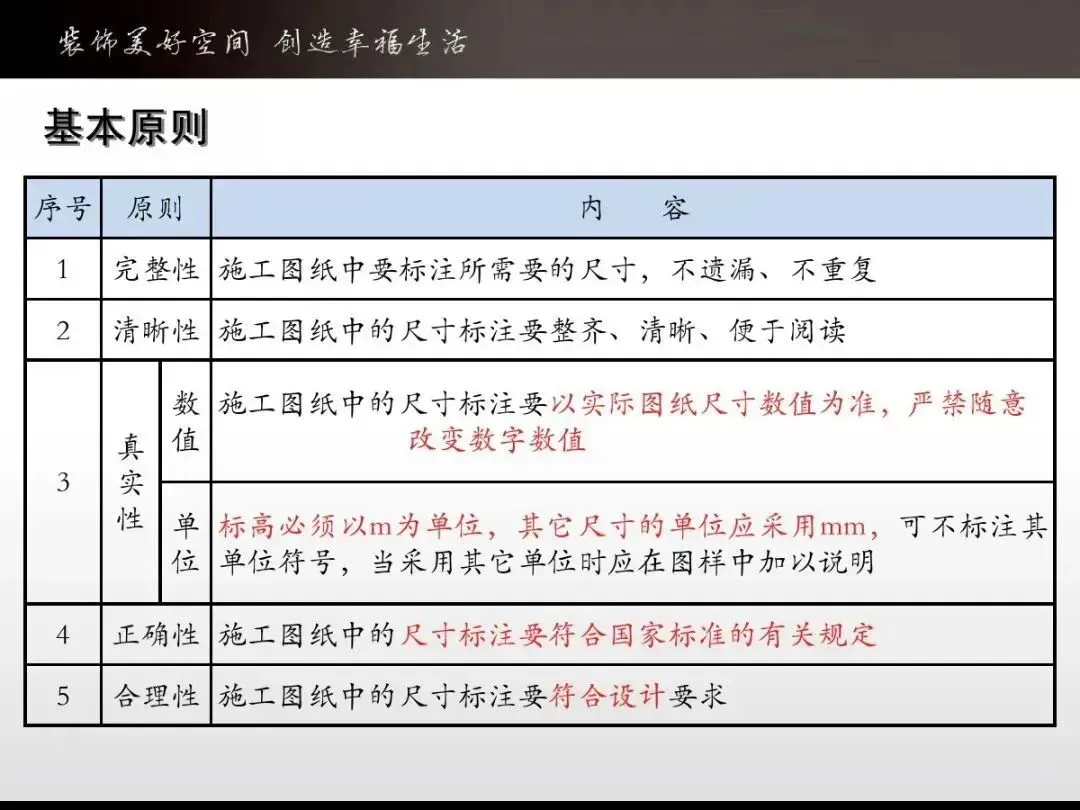

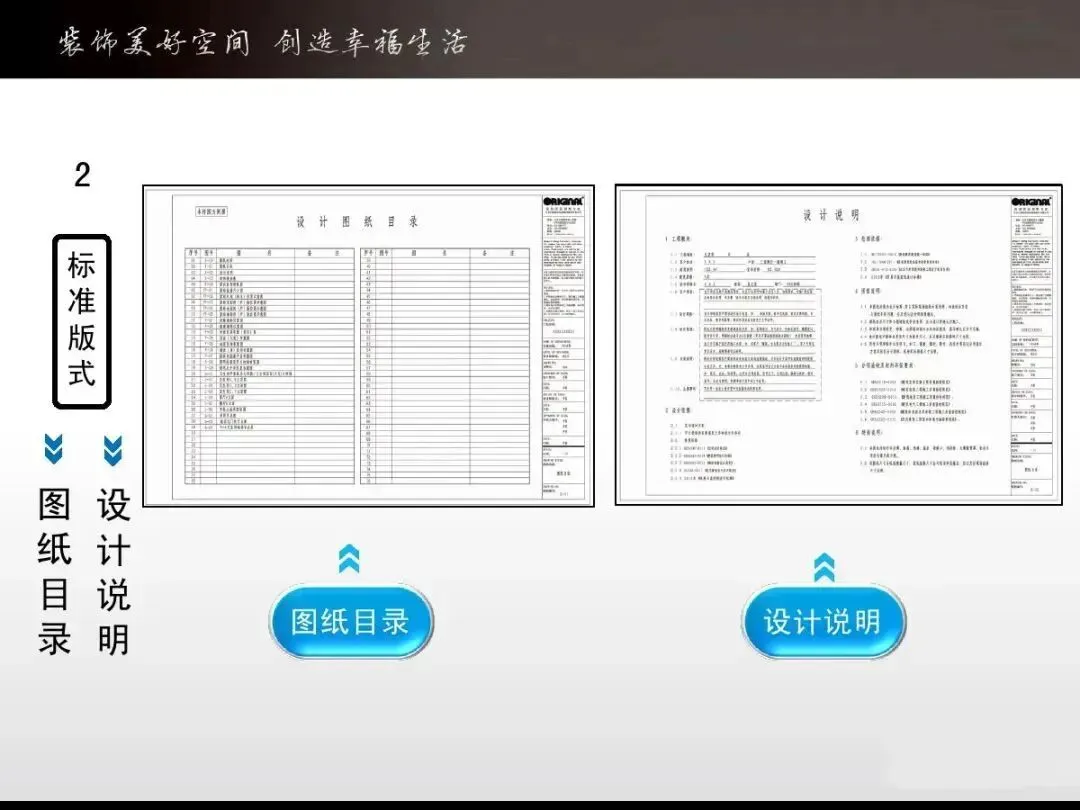

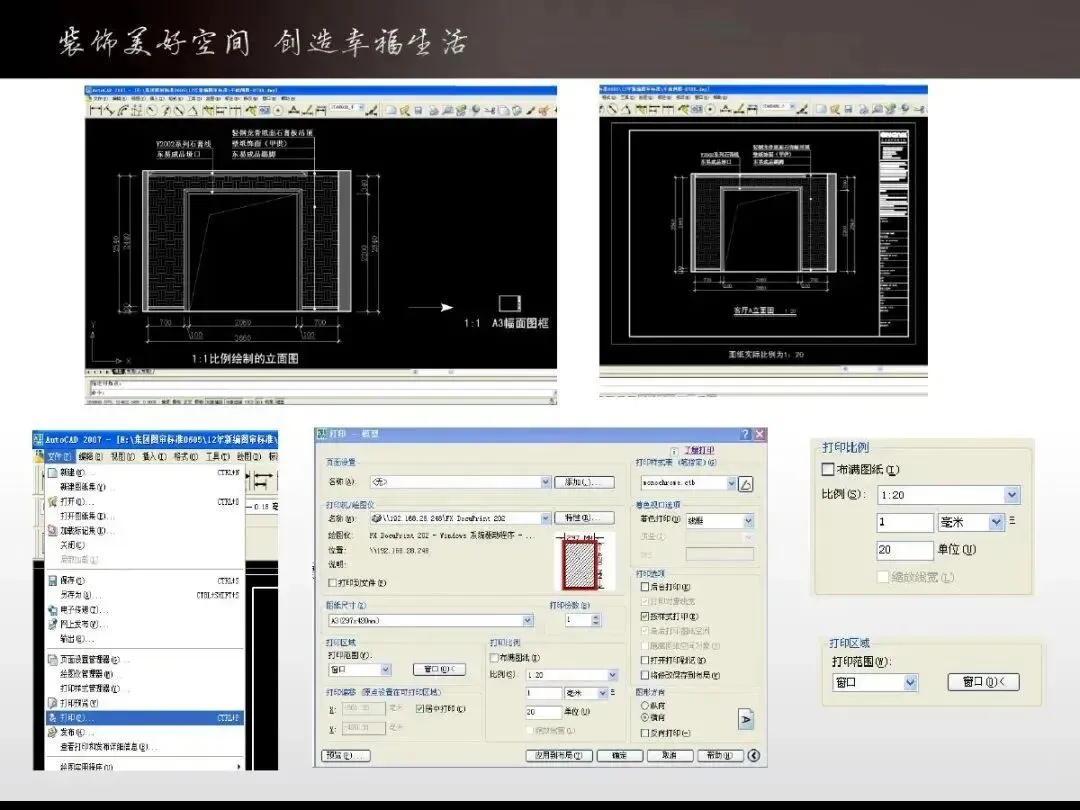

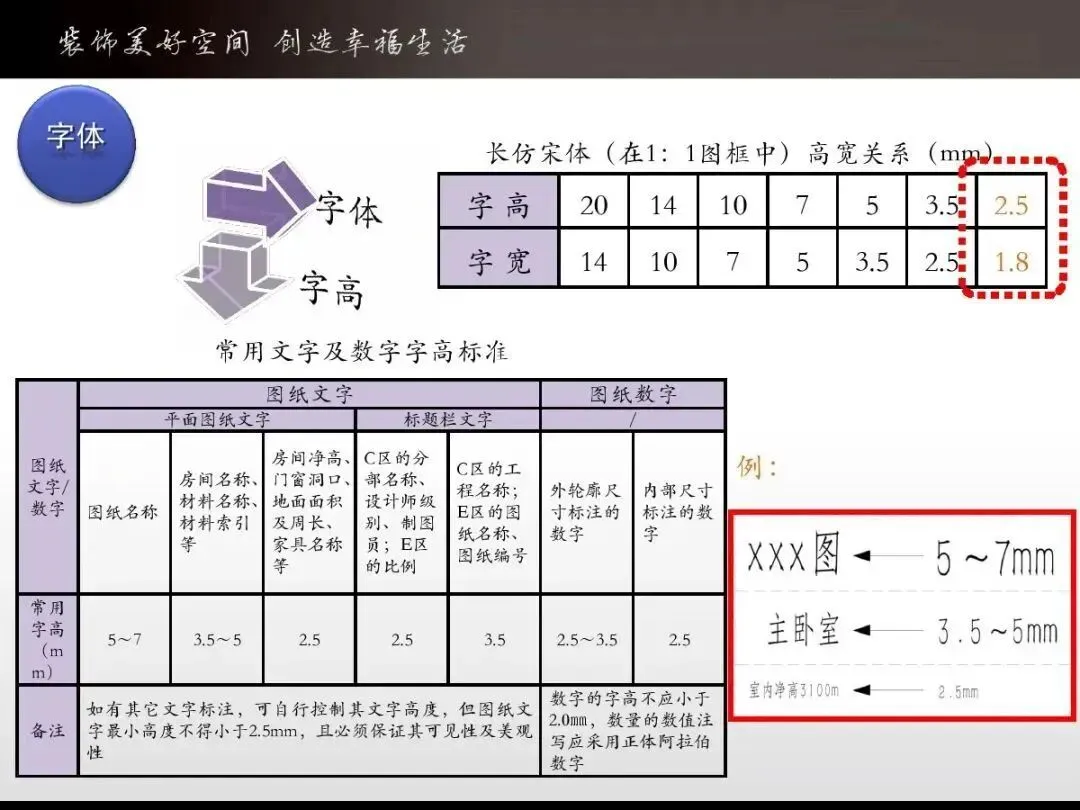

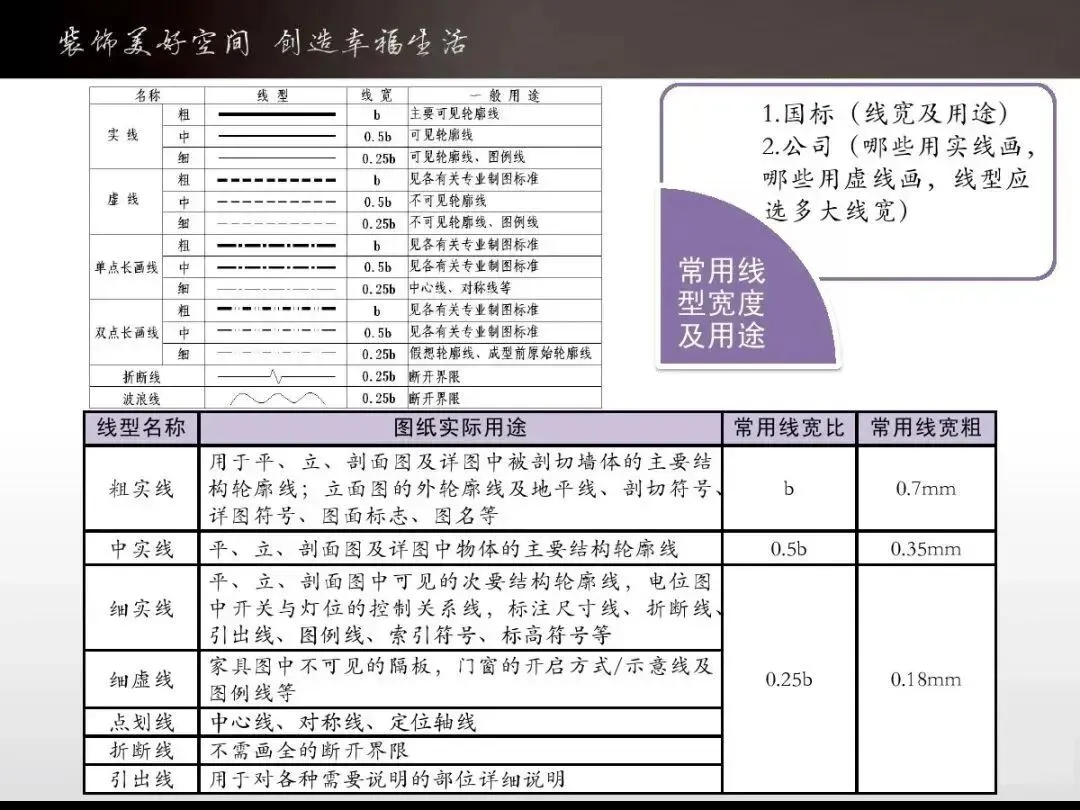

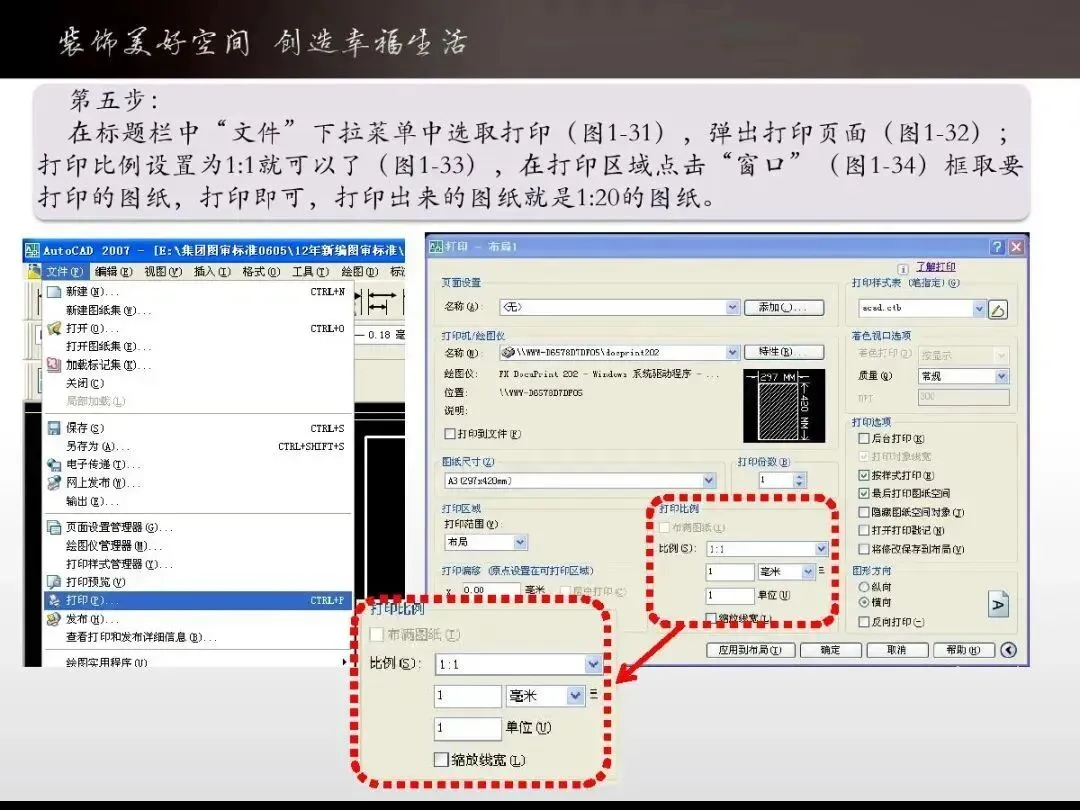

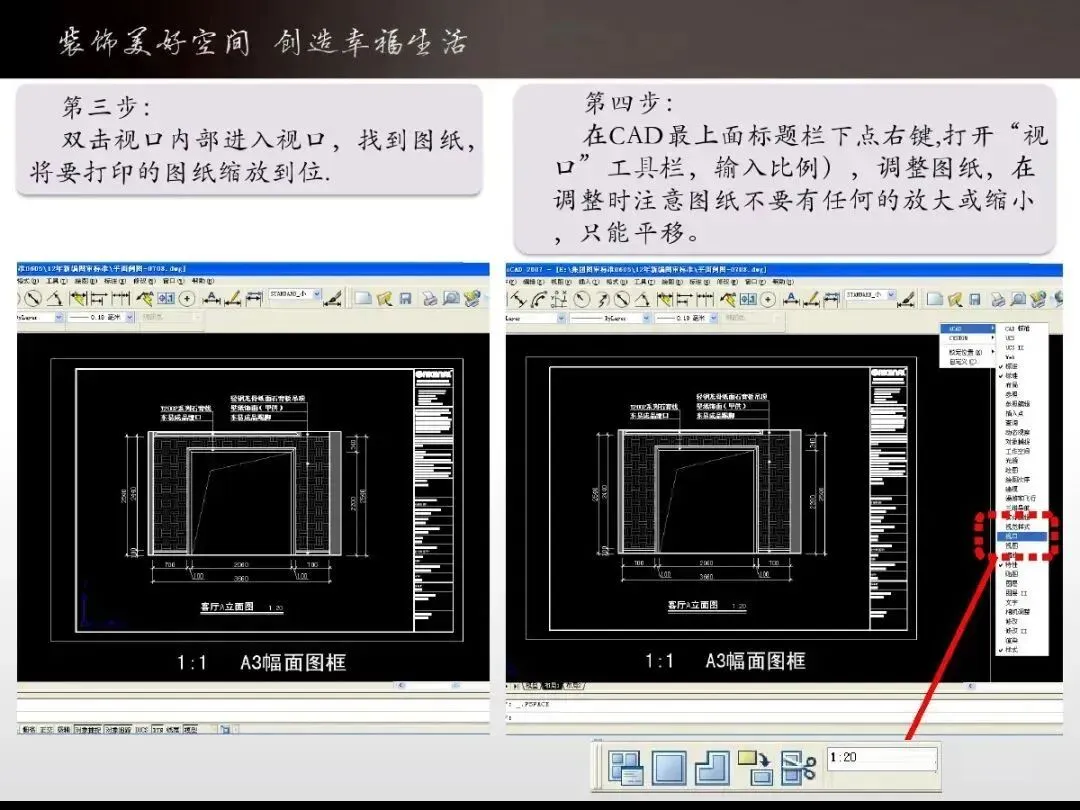

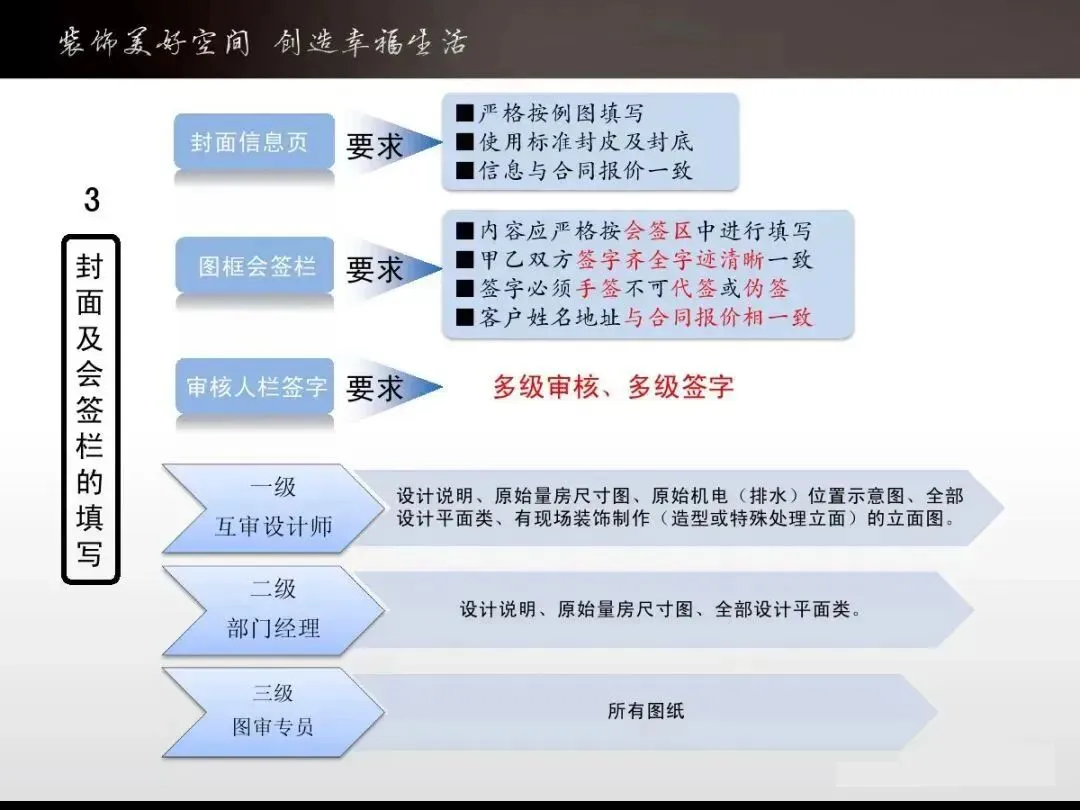

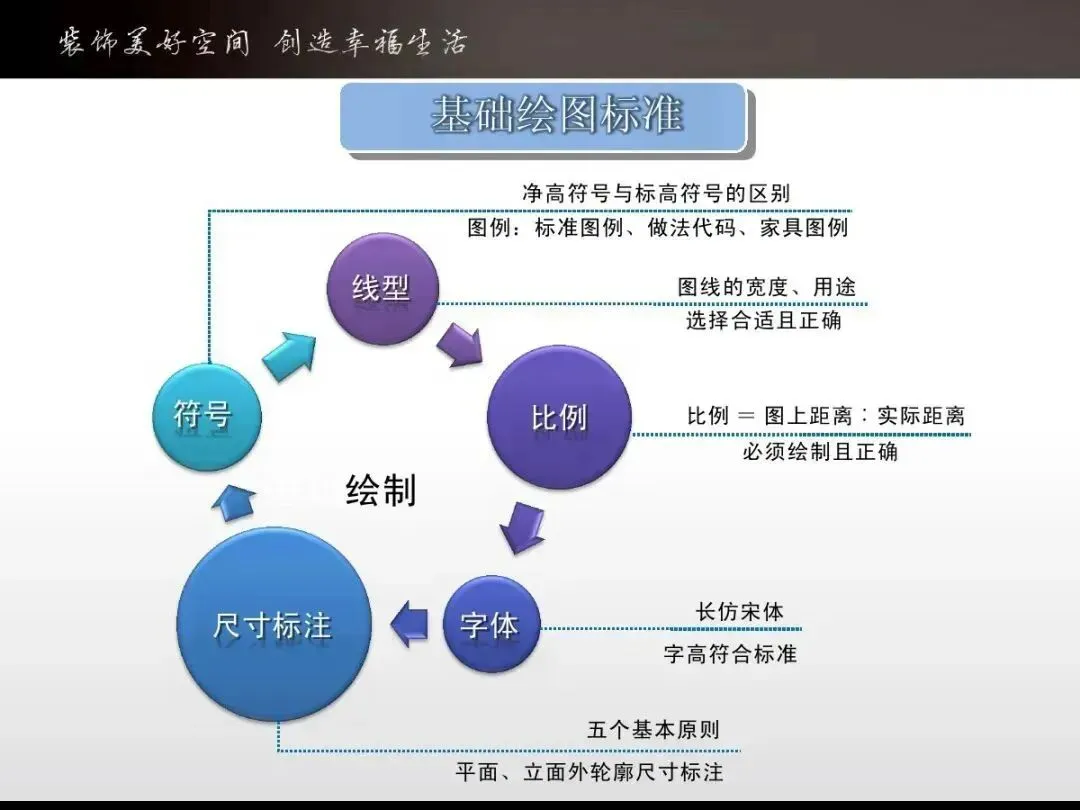

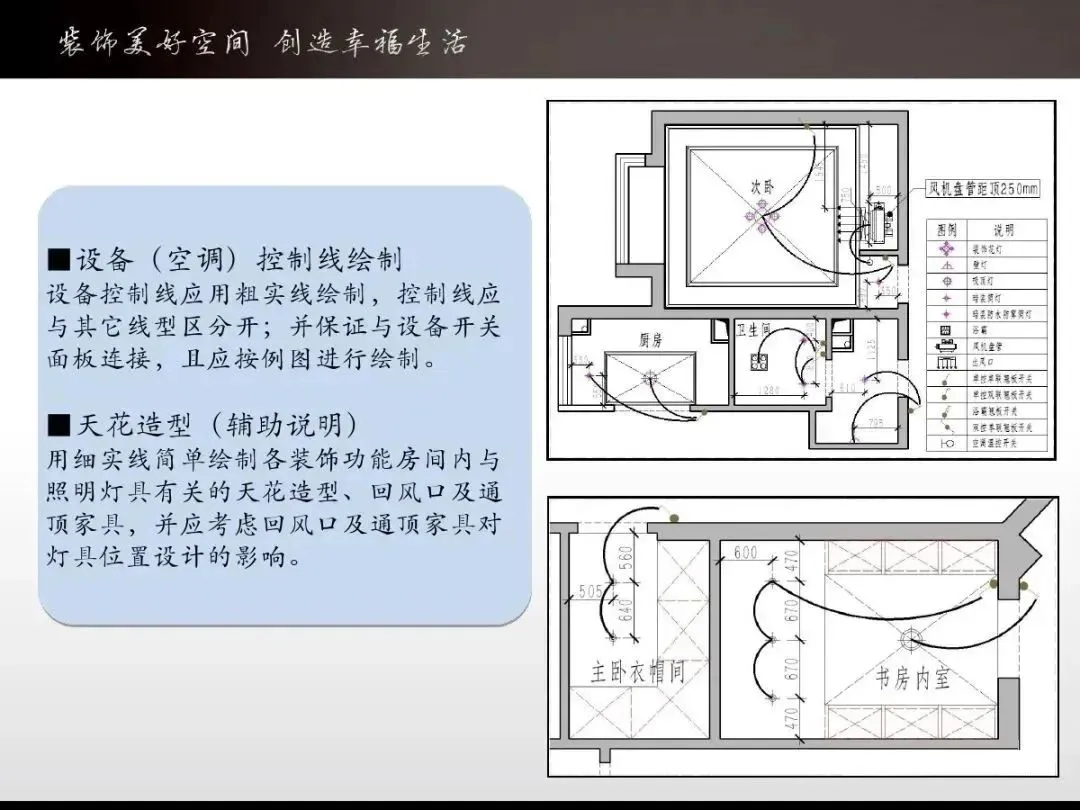

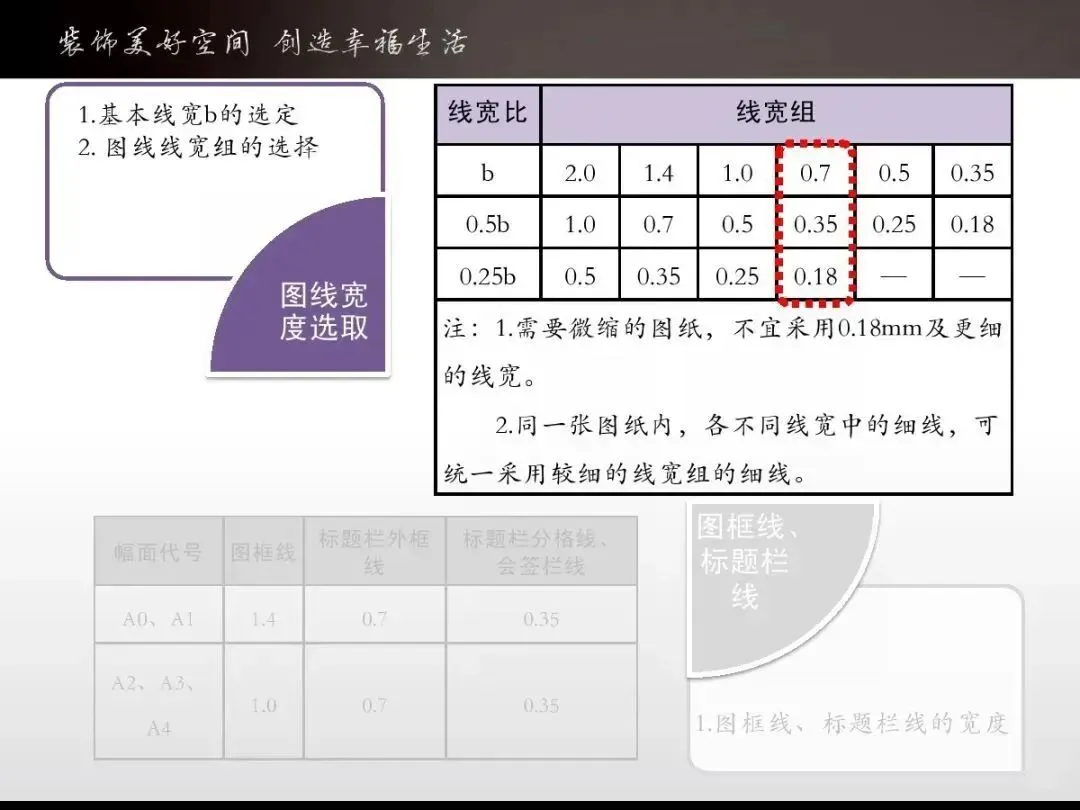

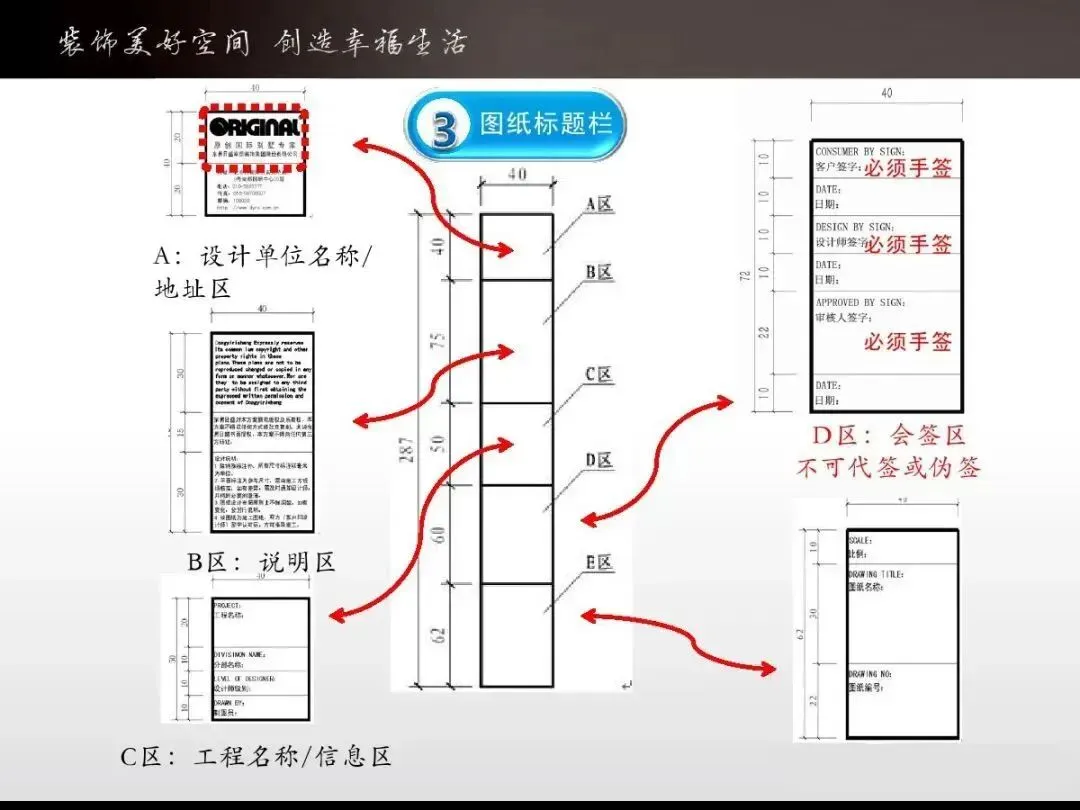

图纸绘制标准培训

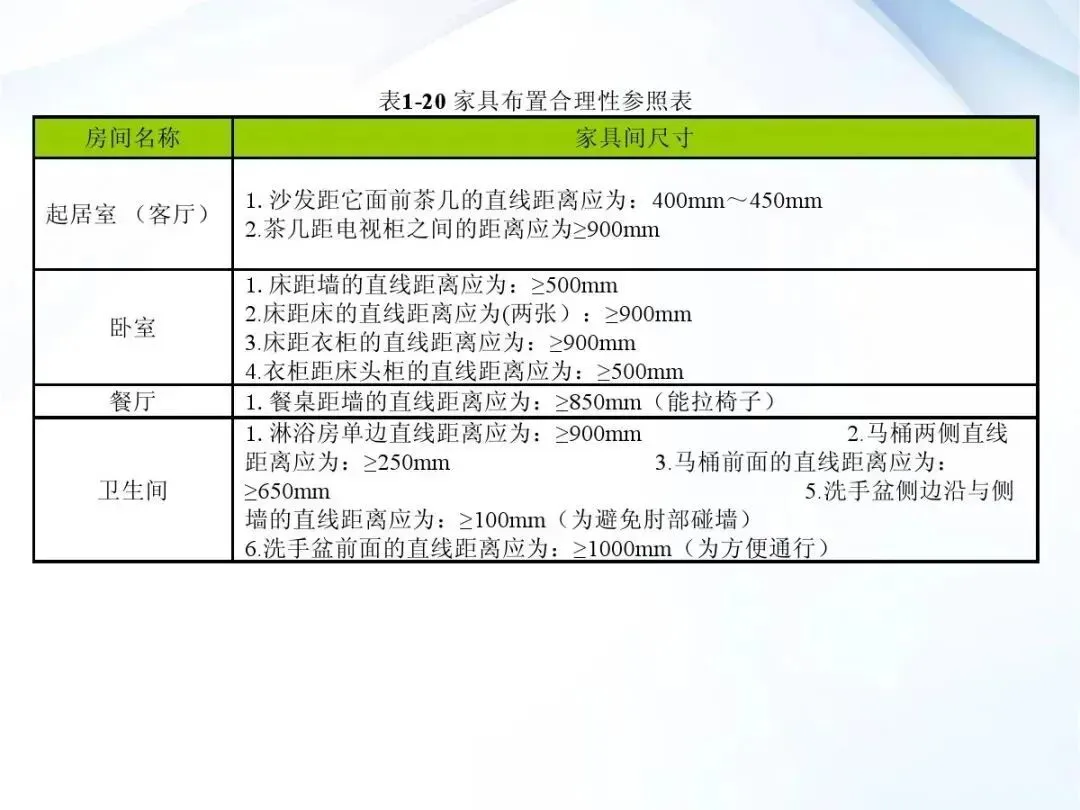

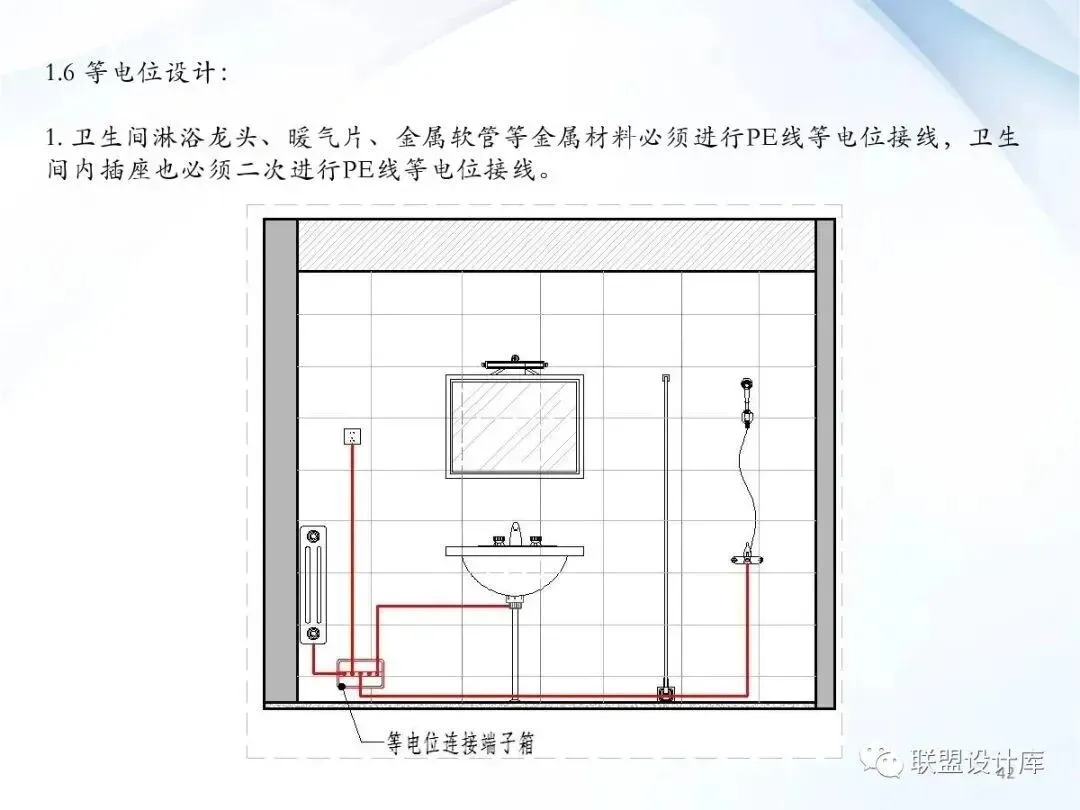

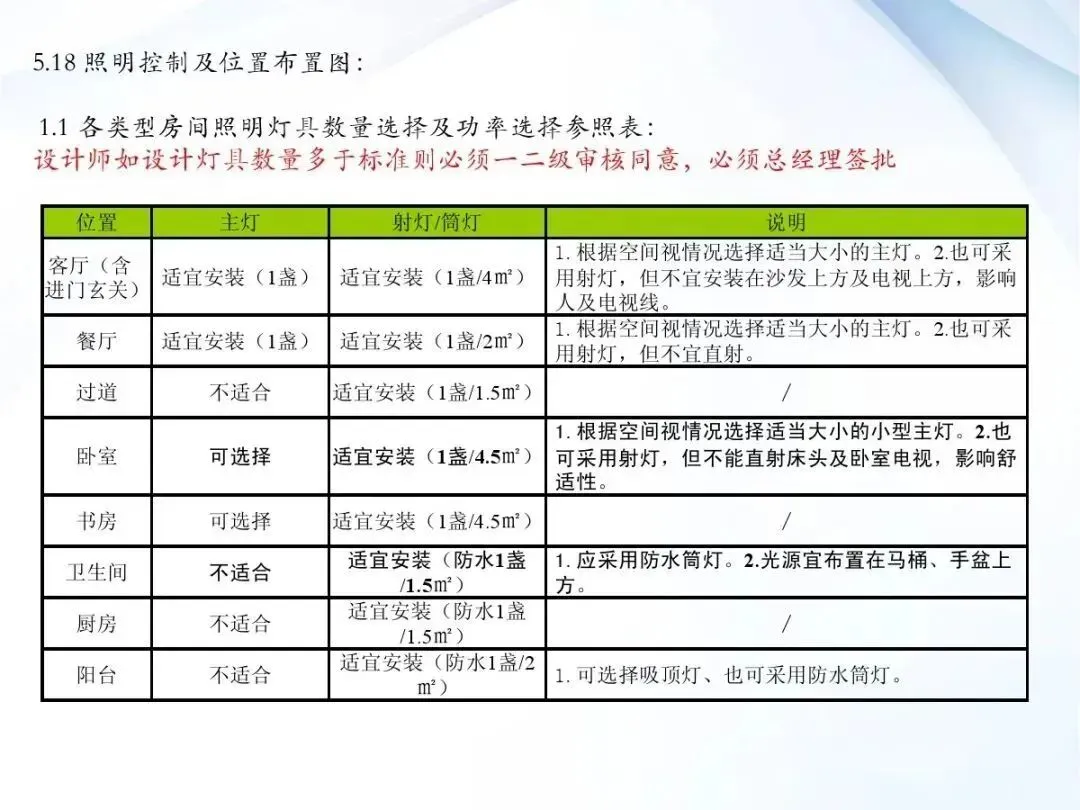

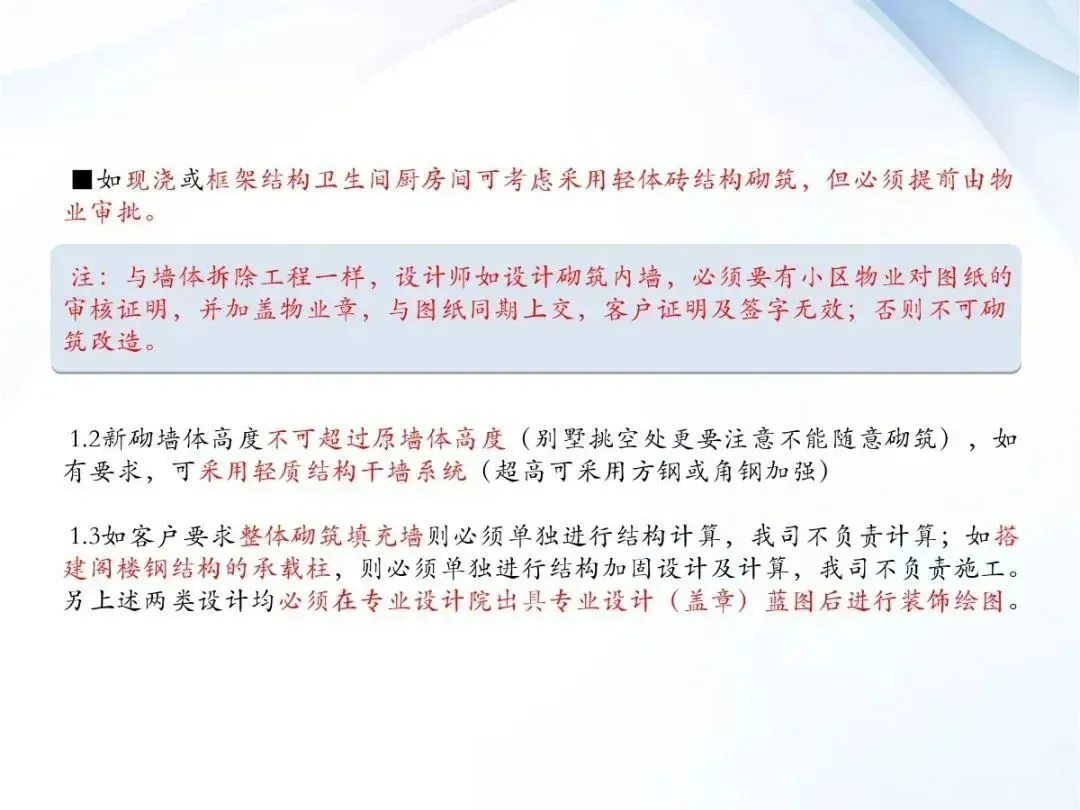

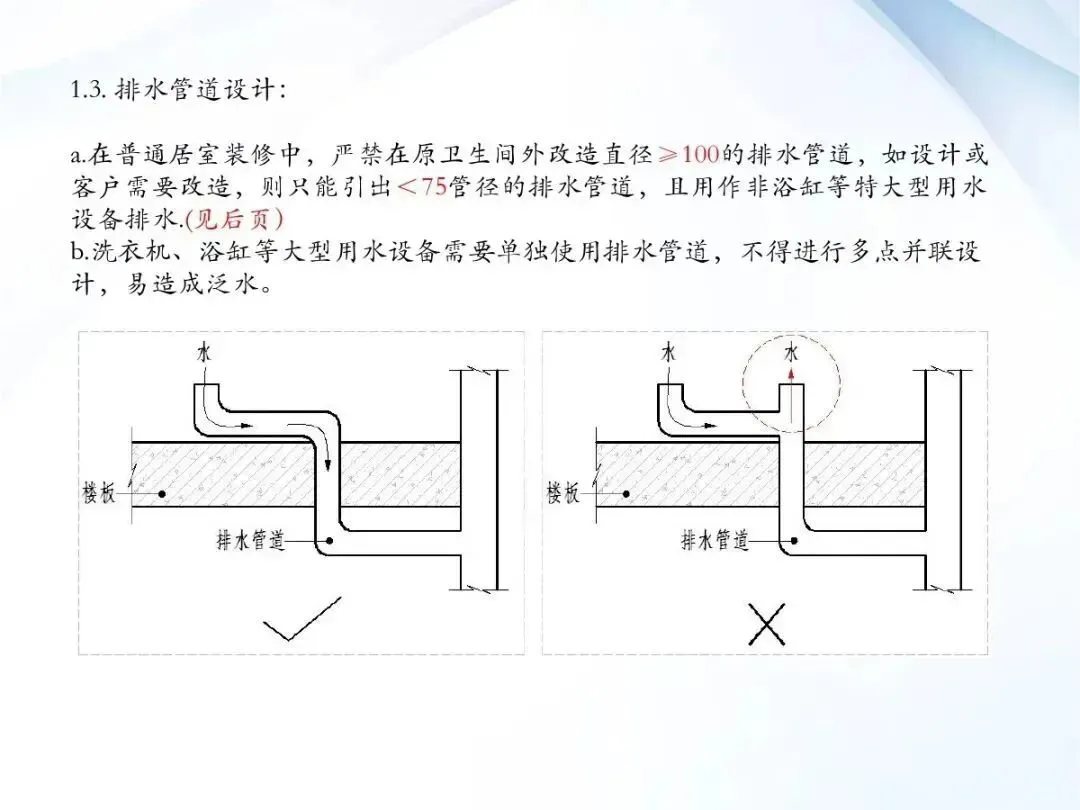

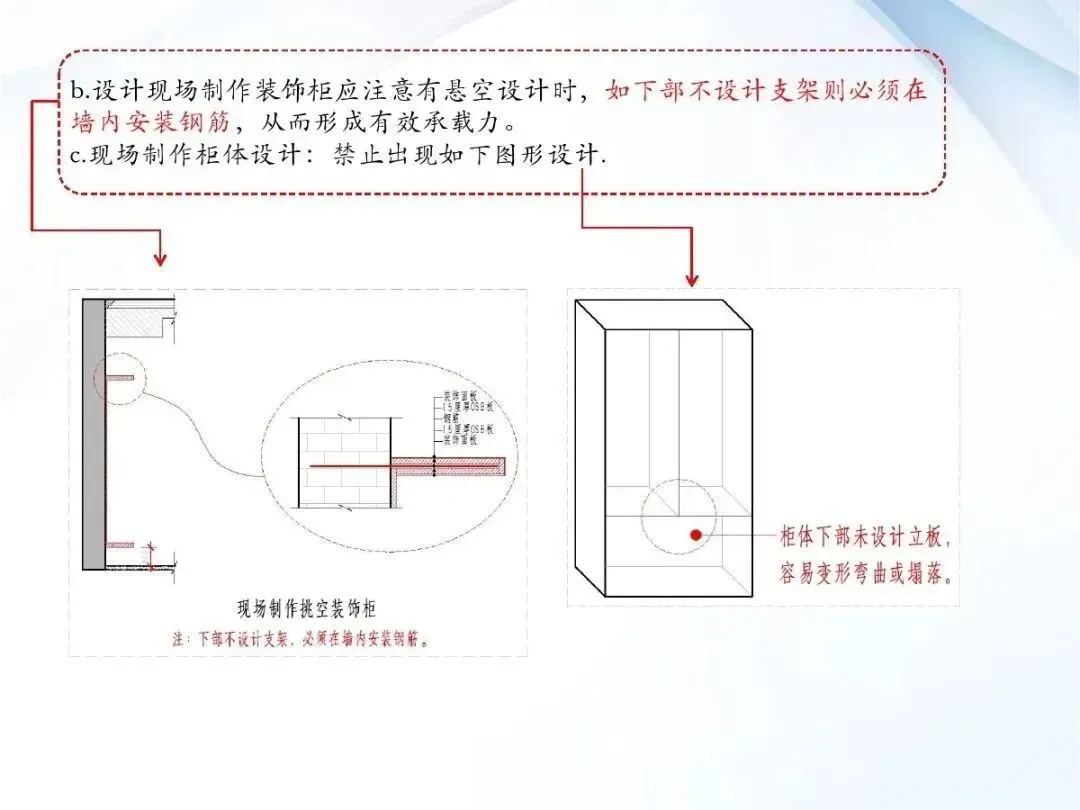

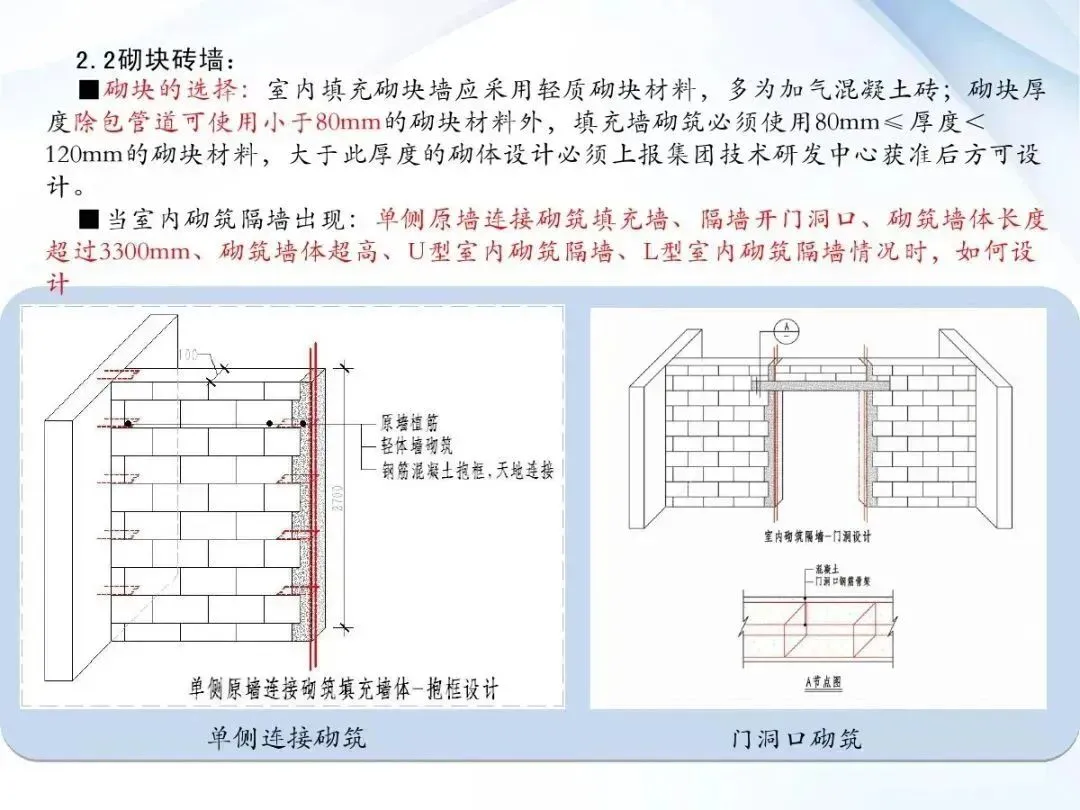

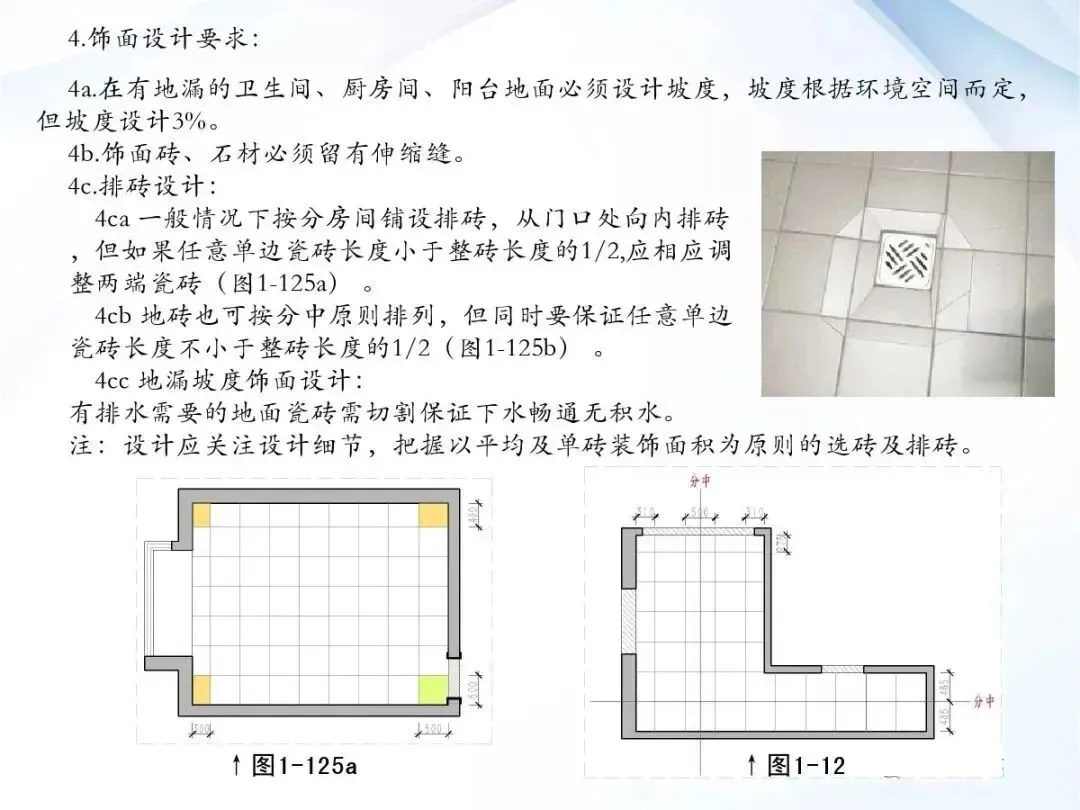

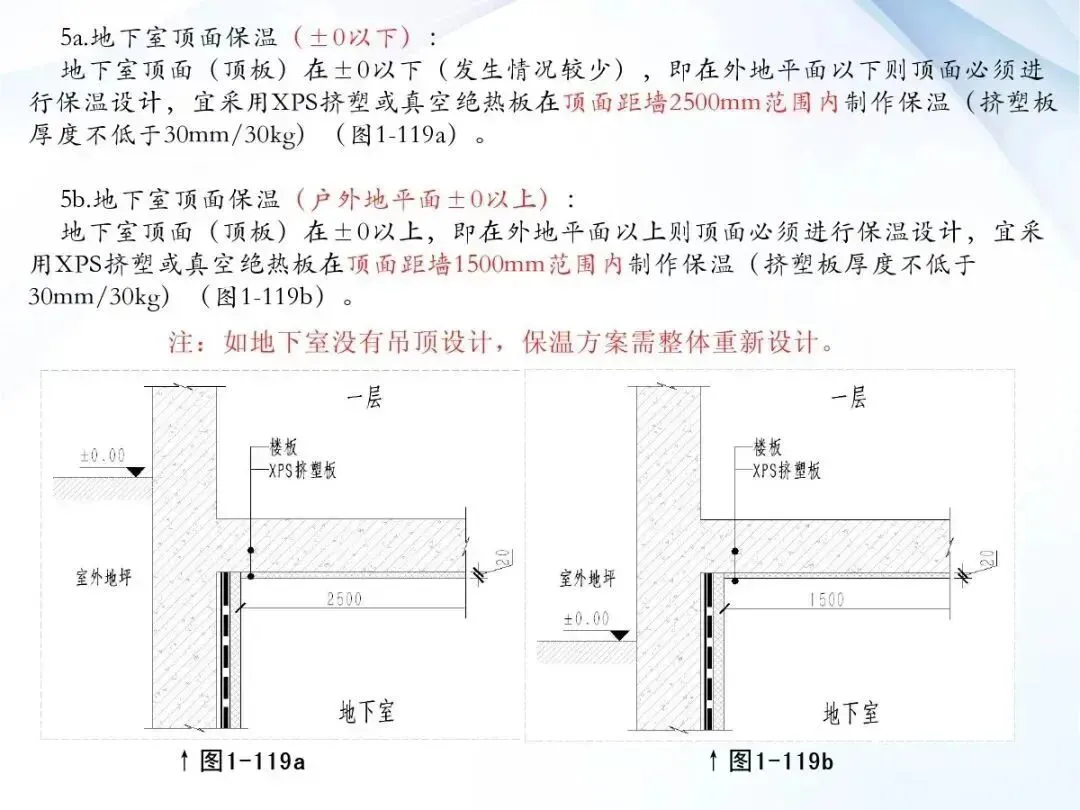

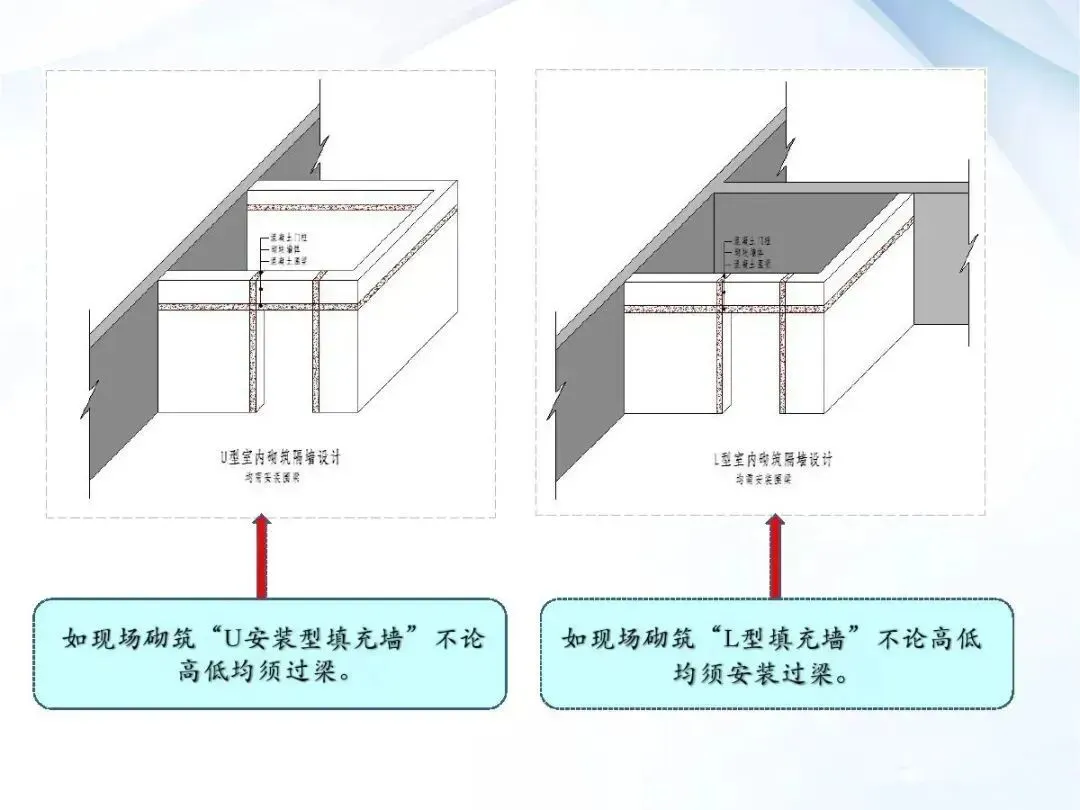

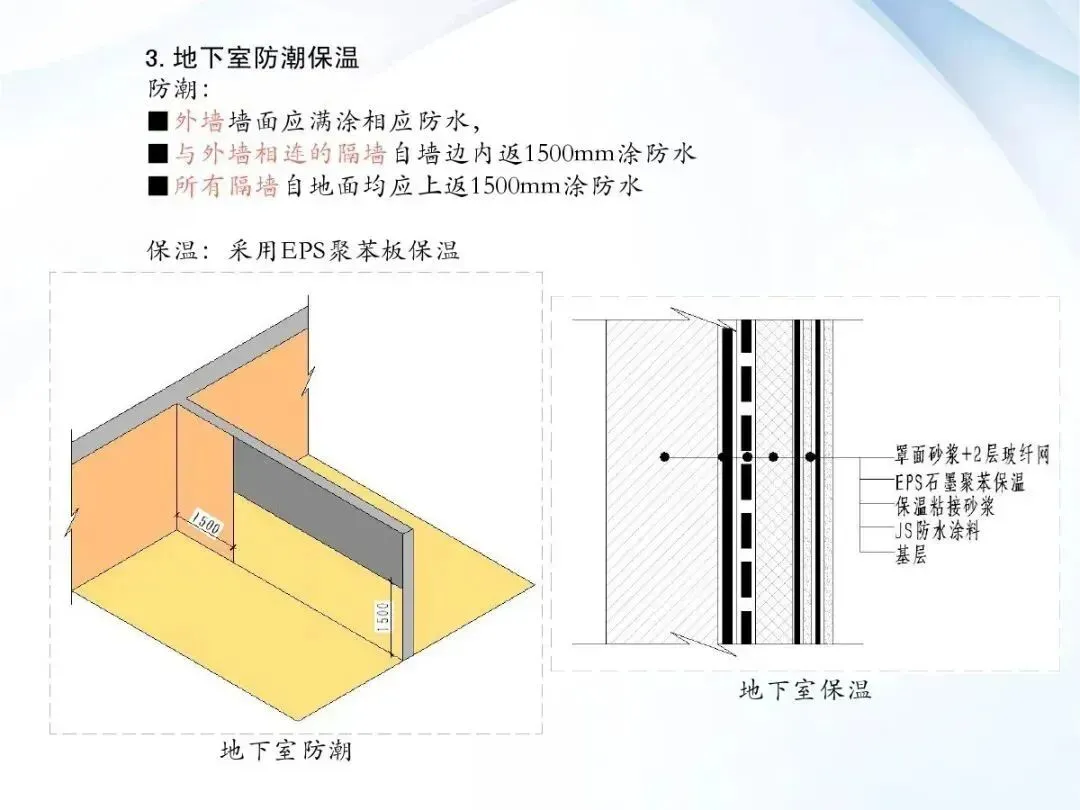

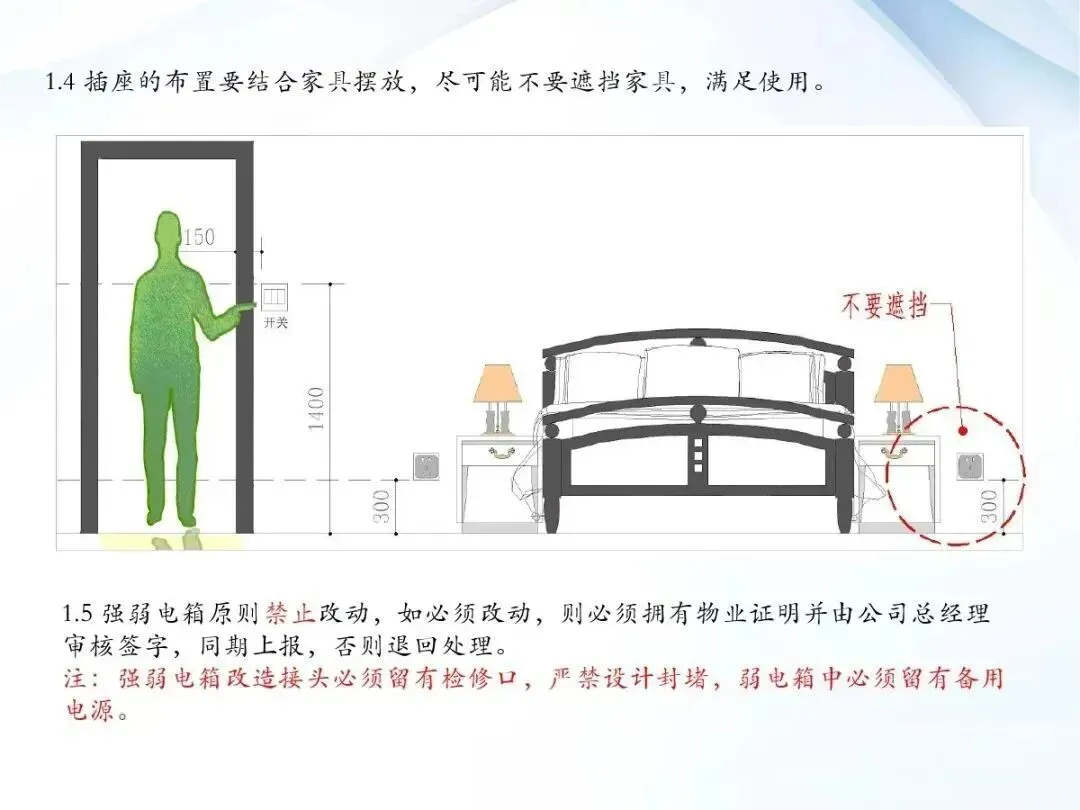

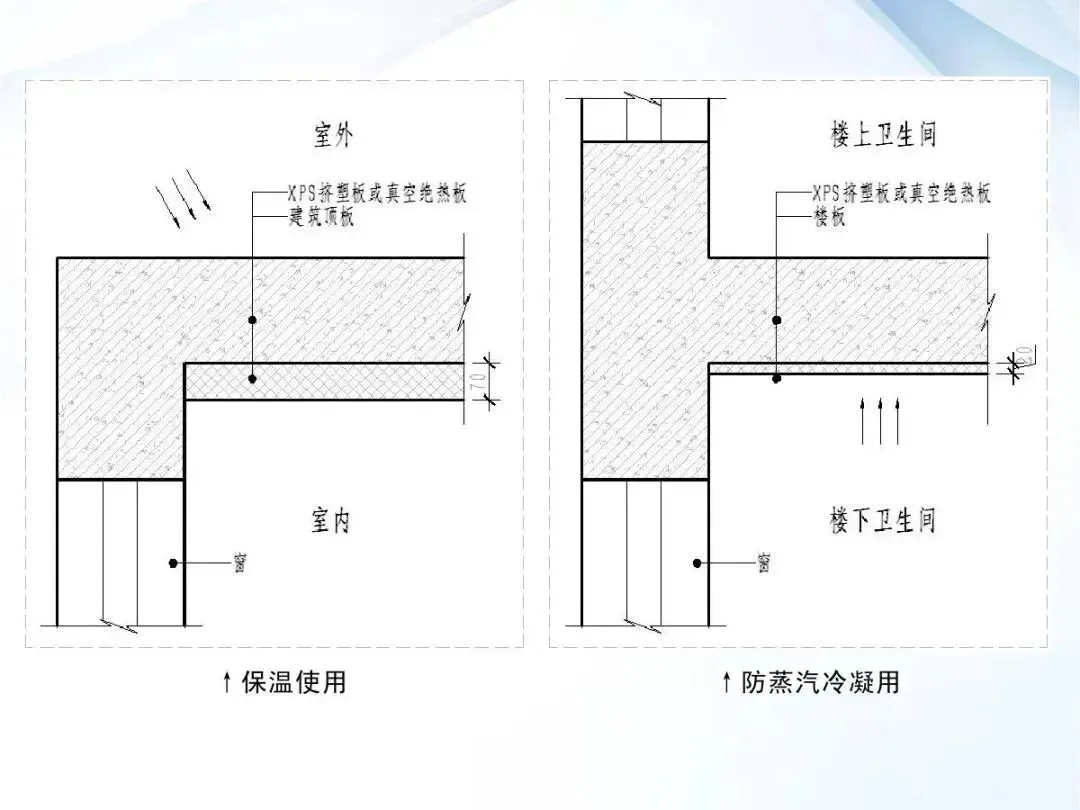

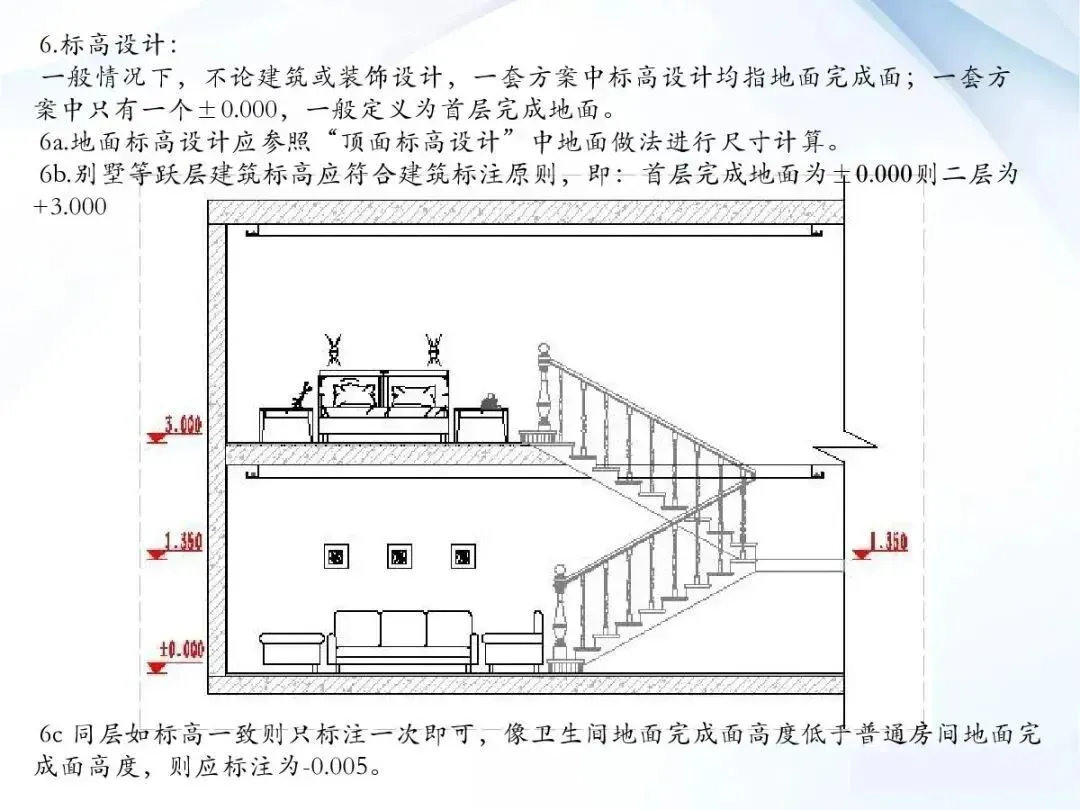

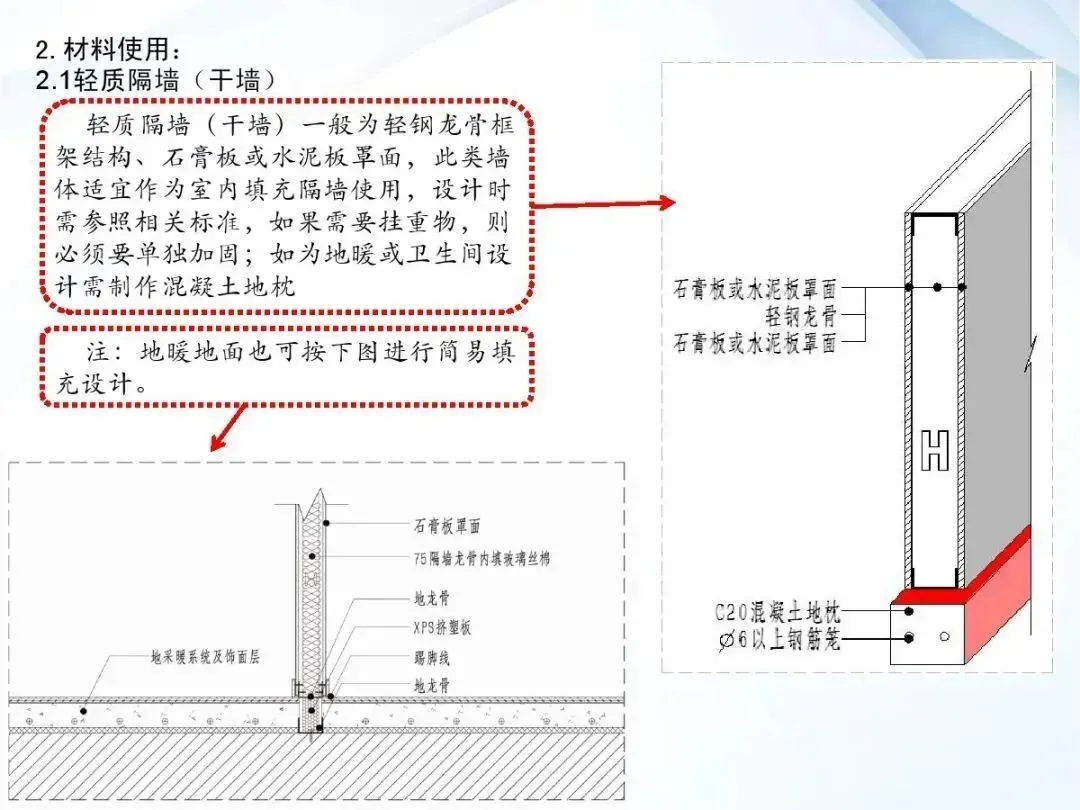

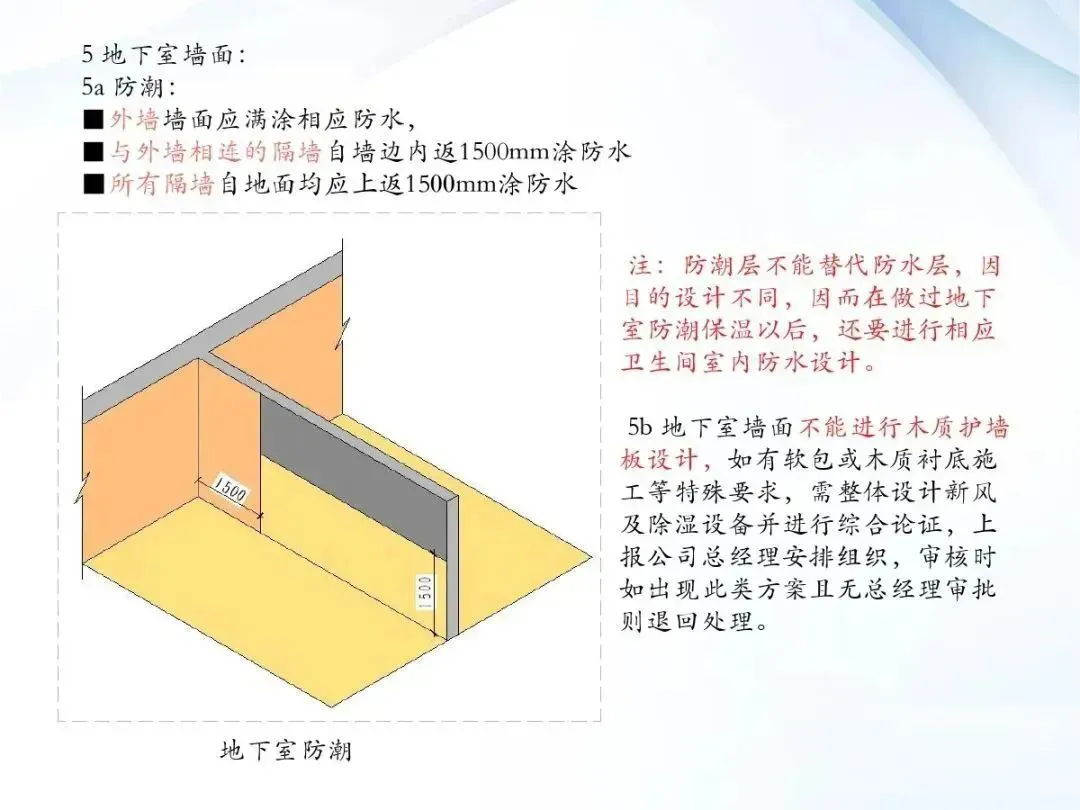

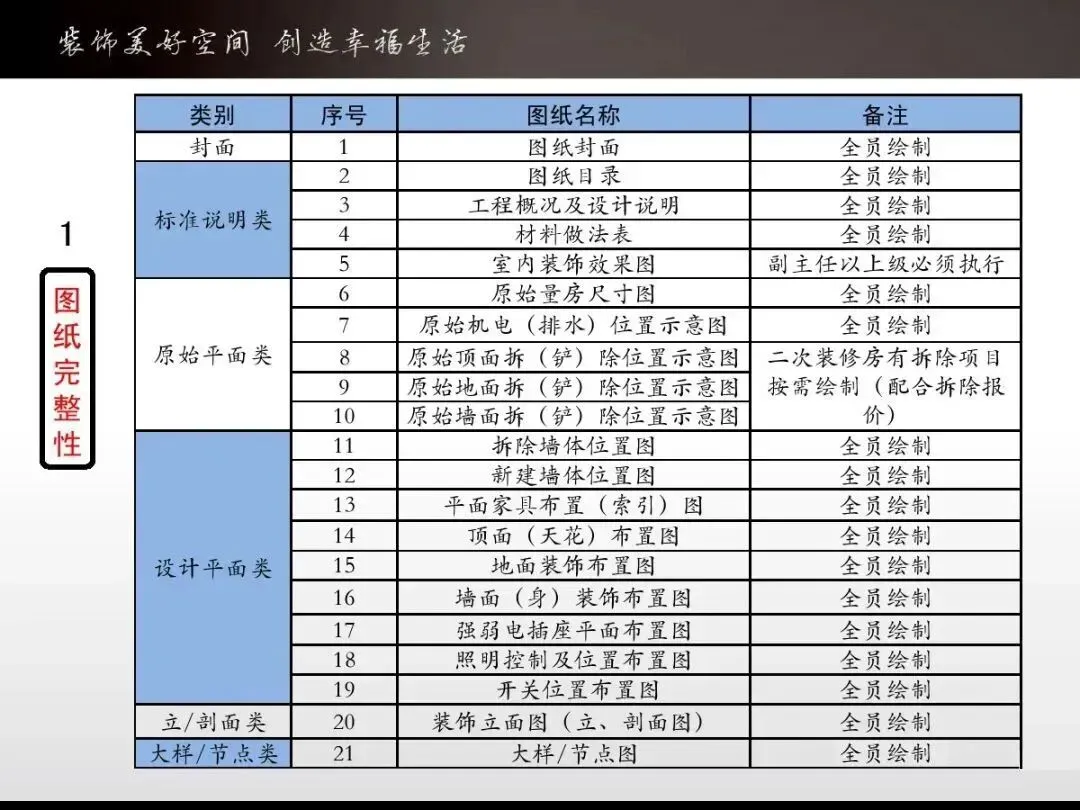

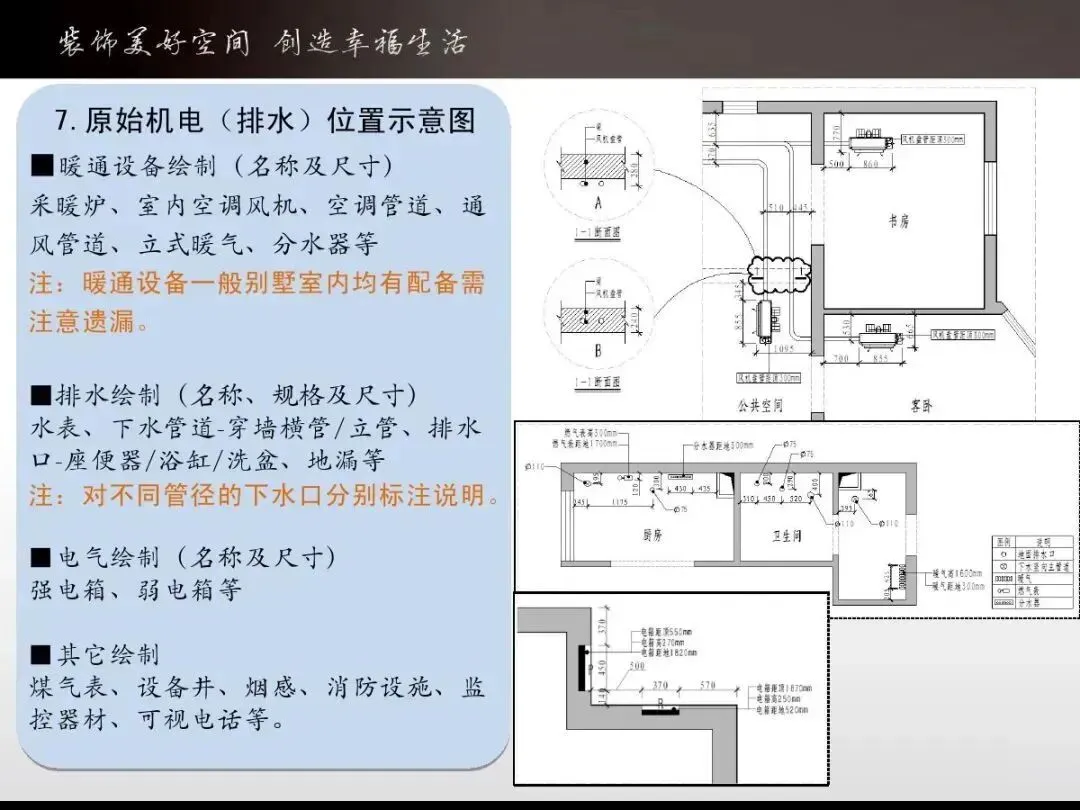

图纸分类设计说明及注意事项

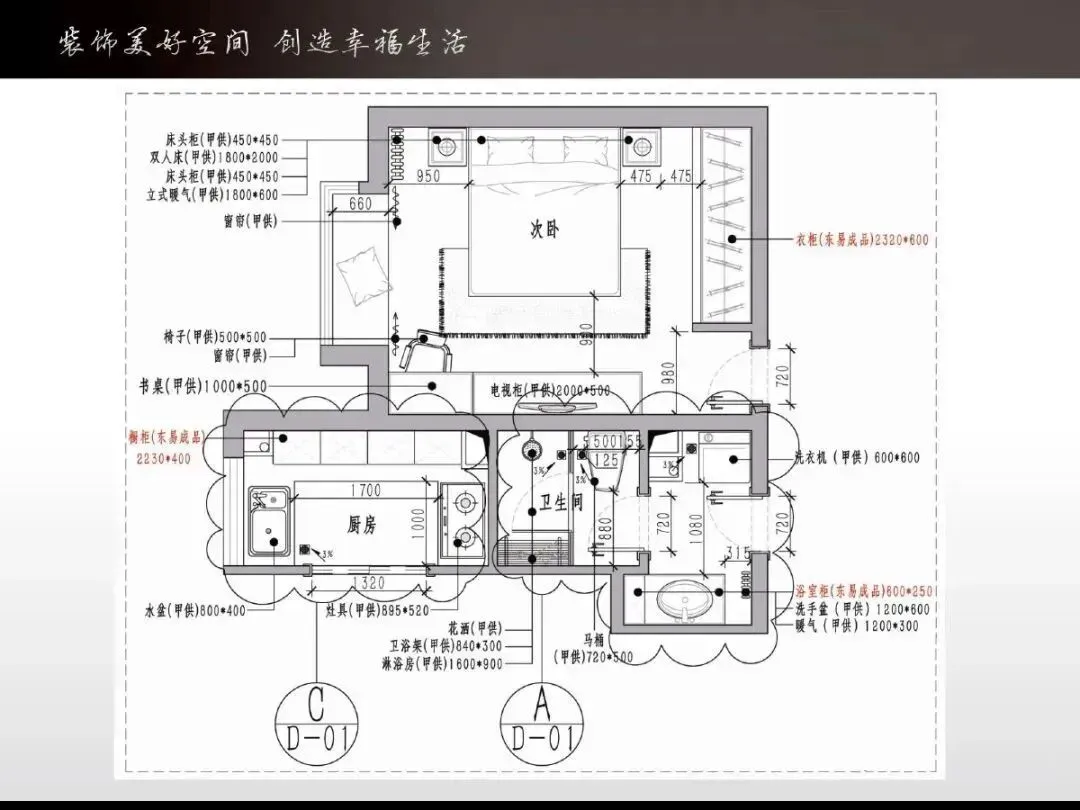

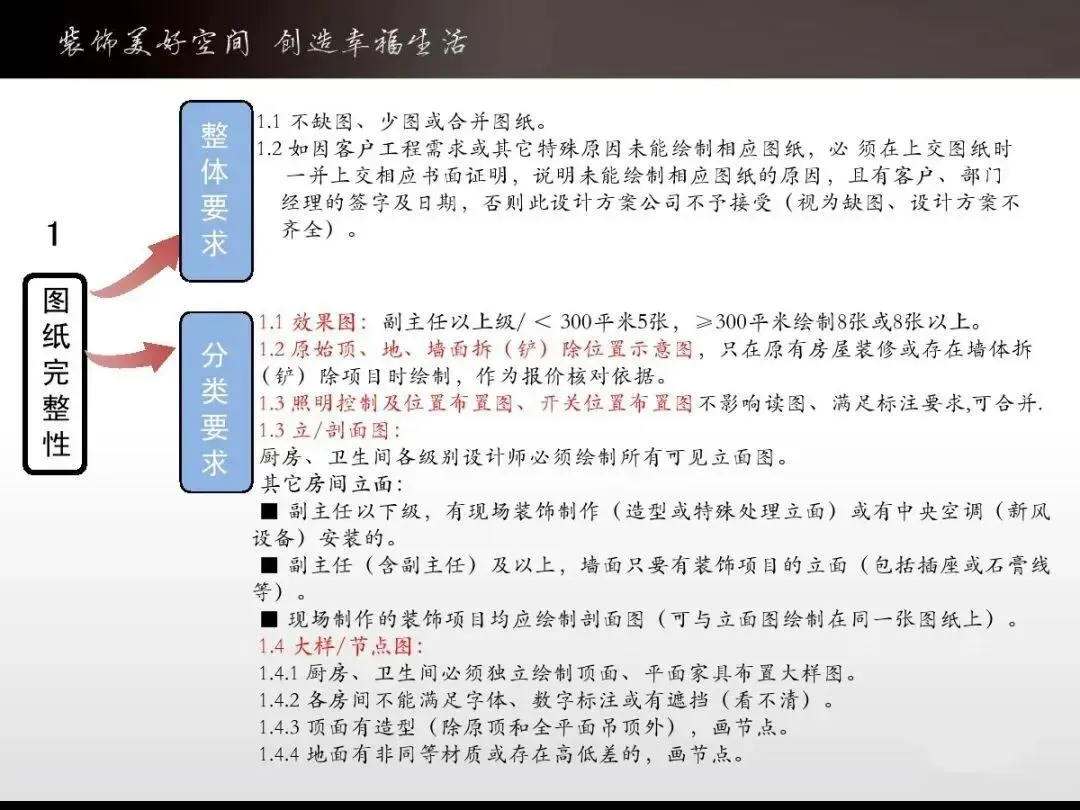

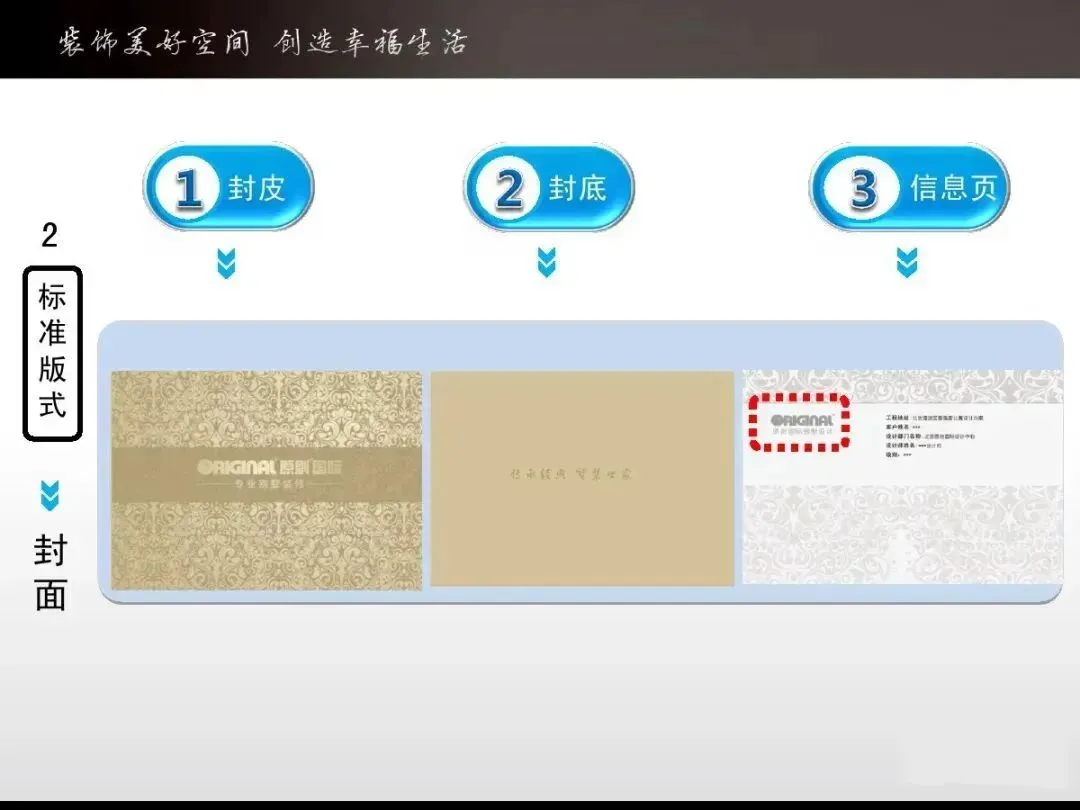

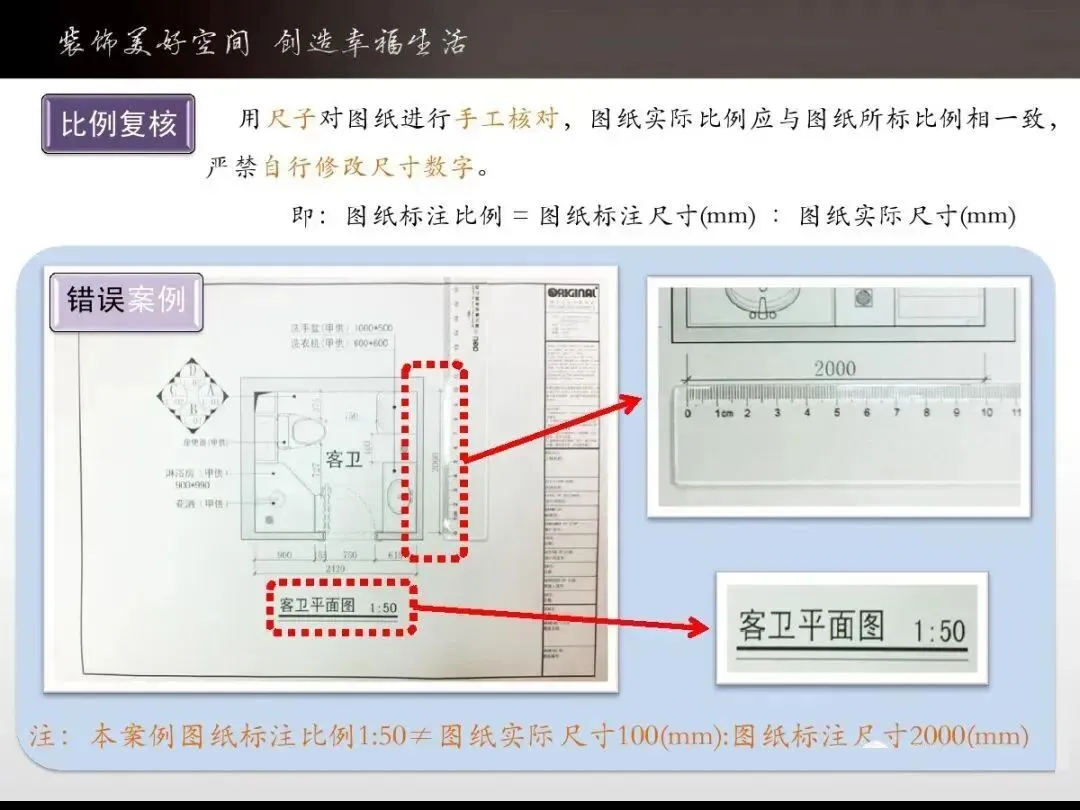

 东易日盛图纸管理标准化手册

以上仅仅是一小部分哦
站长都已经打包好啦
坐等你来拿

------------------

151

全套资源如何获取？

公众号后台私信回复
FGSC
查看获取方式

官方公众号
