【二维动画案例分享】——BIM模型图纸导入

  • 2026-04-04 10:01:45
【二维动画案例分享】——BIM模型图纸导入

二维动画——BIM模型图纸导入课程

主要步骤

PRECAUTIONS
模型与图纸
01

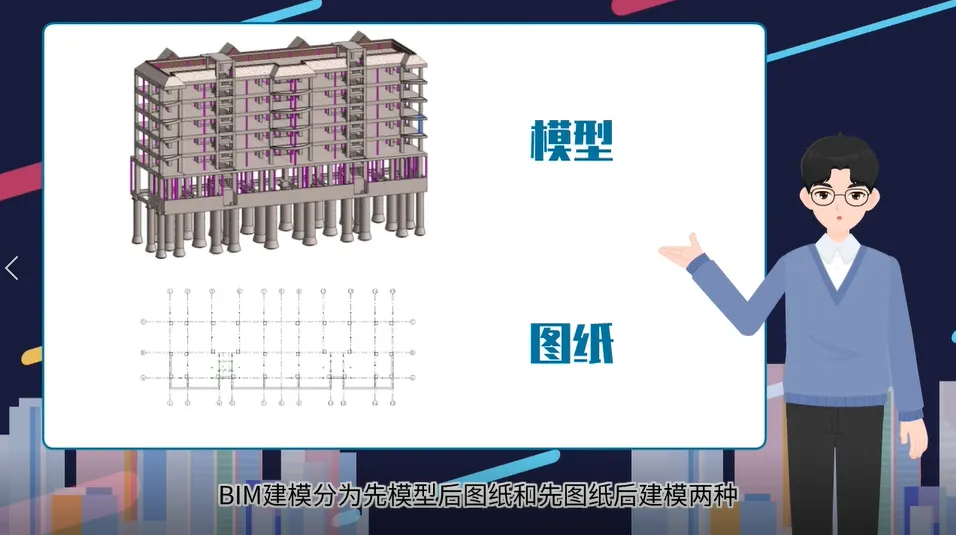

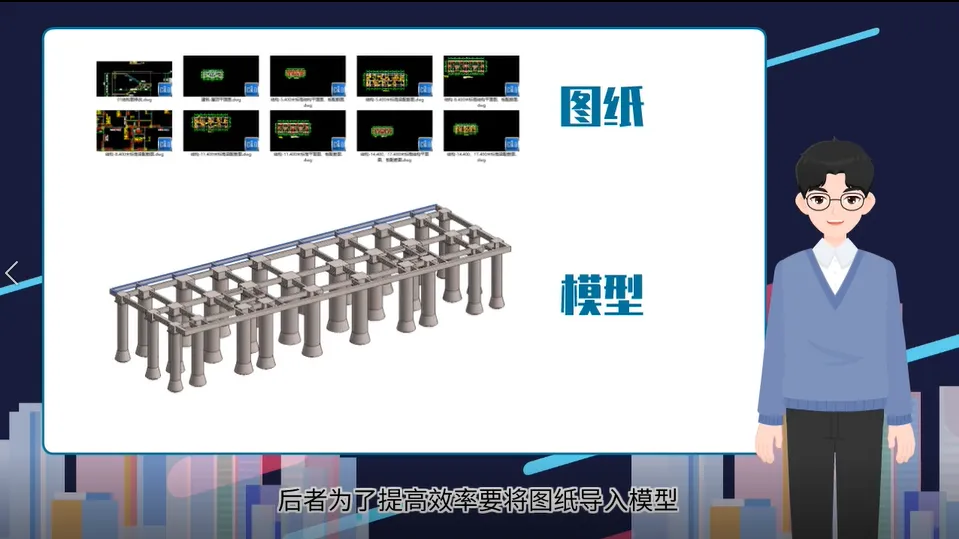

BIM建模分为先模型后图纸和先图纸后建模两种，后者为了提高效率要将图纸导入模型。

PRECAUTIONS
软件直接操作
02

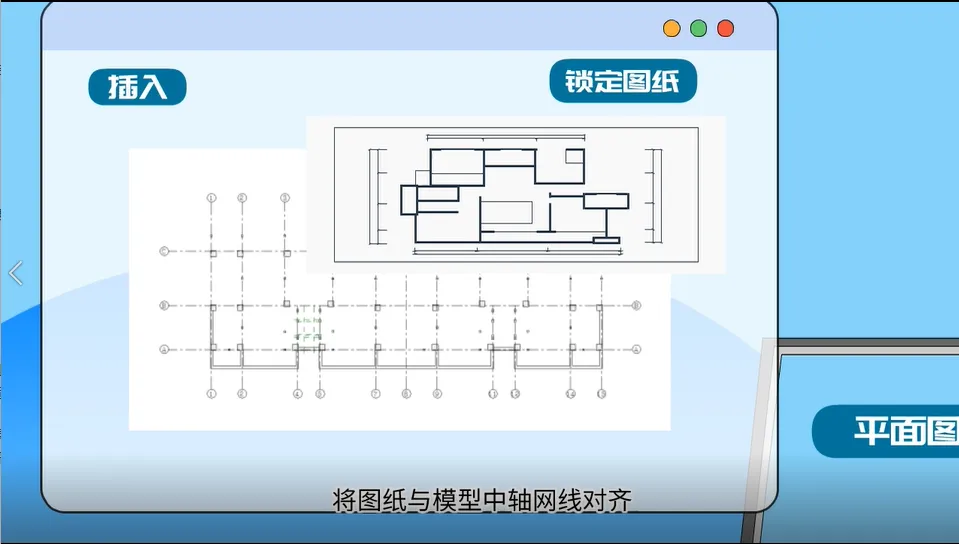

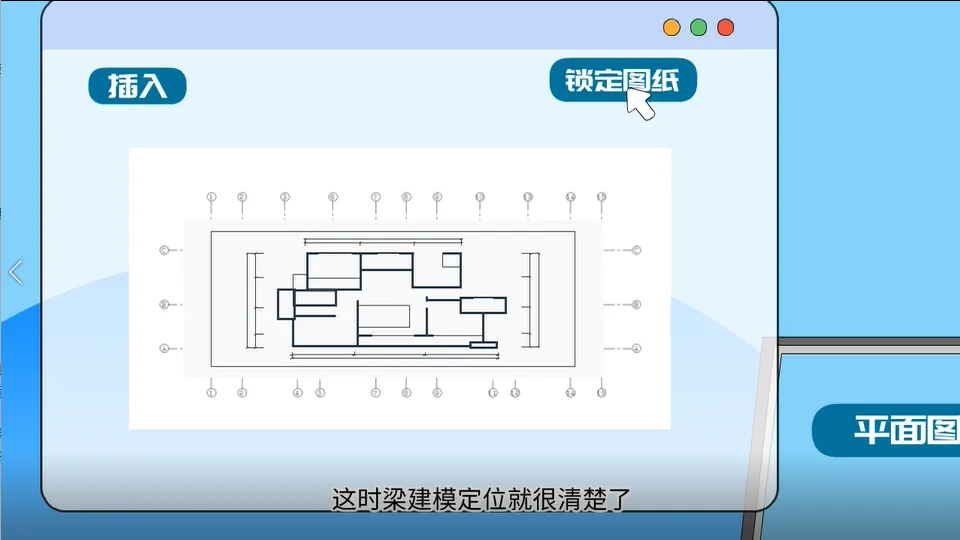

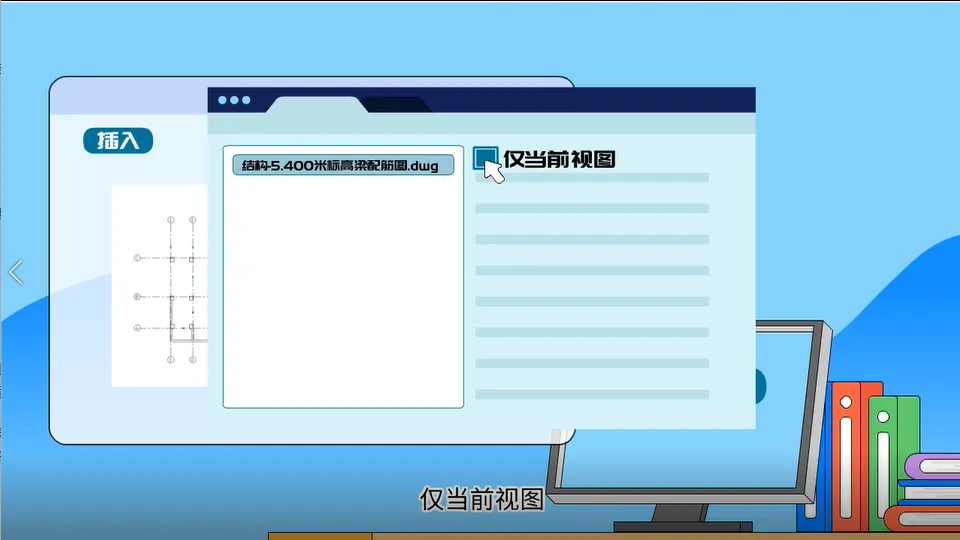

    导入图纸，切到对应楼层平面图视，点击“插入”“导入CAD”，找到图纸，在对话框中勾选“仅当前视图”，单位选“毫米”，定位选“自动-中心到中心”
